1376366-2

Active

TE Connectivity AMP Connectors

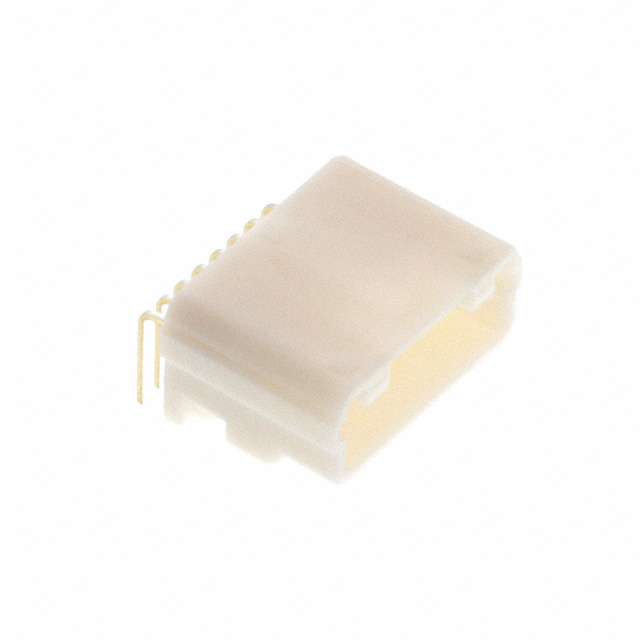

CONN HEADER R/A 8POS 2.2MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 8POS 2.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376366-2

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.217 in
Contact Length - Mating	5.5 mm
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Mounting Brackets
Insulation Color	Natural
Insulation Height	0.492 in
Insulation Height	12.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.087 in
Pitch - Mating	2.2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER R/A 8POS 2.2MM

Part	Insulation Height	Insulation Height	Number of Positions	Shrouding	Number of Rows	Contact Finish - Post	Style	Fastening Type	Number of Positions Loaded	Termination	Contact Length - Post	Contact Length - Post	Insulation Material	Mounting Type	Contact Shape	Contact Type	Connector Type	Features	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating
TE Connectivity AMP Connectors 1376366-2	0.492 in	12.5 mm	8	Shrouded - 4 Wall	1	Tin	Board to Cable/Wire	Latch Holder	All	Solder	0.157 in	4 mm	Polybutylene Terephthalate (PBT), Glass Filled	Through Hole, Right Angle	Square	Male Pin	Header	Mounting Brackets	0.087 in	2.2 mm	Natural	Brass	100 °C	-30 ░C	0.217 in	5.5 mm
