1415122

Active

Phoenix Contact

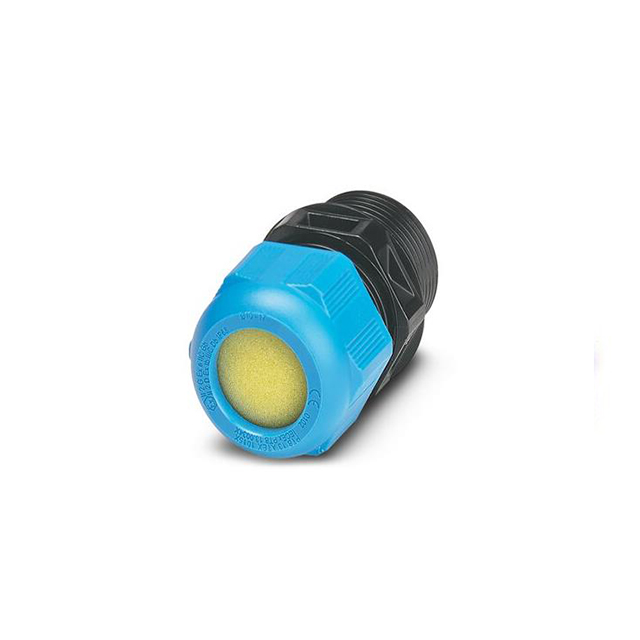

CABLE GLAND 34-48MM M63 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-48MM M63 POLYAMID

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415122	G-ESIS-M63 Series

Color	Black, Blue	Black, Blue
Includes	Seal	Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	48 mm	48 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.89 "	1.89 "
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in	1.339 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm	34 mm
Thread Length	0.709 in	0.709 in
Thread Length	18.01 mm	18.01 mm
Thread Size	M63	M63
Type	Cable Gland	Cable Gland

CABLE GLAND 34-48MM M63 POLYAMID

Part	Includes	Color	Thread Length	Thread Length	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1415113	Seal	Black	0.709 in	18.01 mm	IP66/IP68	Polyamide (PA), Nylon	1.339 in	34 mm	Cable Gland	-40 °C	75 ░C	M63	48 mm	1.89 "
Phoenix Contact 1415122	Seal	Black, Blue	0.709 in	18.01 mm	IP66/IP68	Polyamide (PA), Nylon	1.339 in	34 mm	Cable Gland	-40 °C	75 ░C	M63	48 mm	1.89 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.76

General part information

Cable Gland Polyamide (PA), Nylon M63 Black, Blue
