Description
General part information

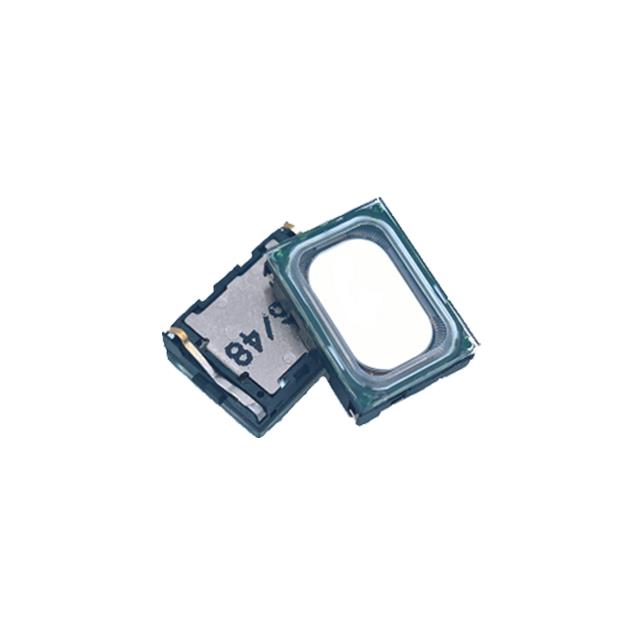

CR1511L025YN8WP
8 Ohms General Purpose Speaker 800 mW 850 Hz ~ 20 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | CR1511L025YN8WP |
|---|---|
| Efficiency - dBA | 73 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 850 Hz |
| Height - Seated (Max) | 0.098 in |
| Impedance | 8 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max | 1 VA |
| Power - Rated | 0.8 W |
| Shape | Rectangular |
| Size / Dimension Length | 0.591 in |
| Size / Dimension Width | 0.433 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
