SQ48T03150-PCA0G

Active

Bel Power Solutions

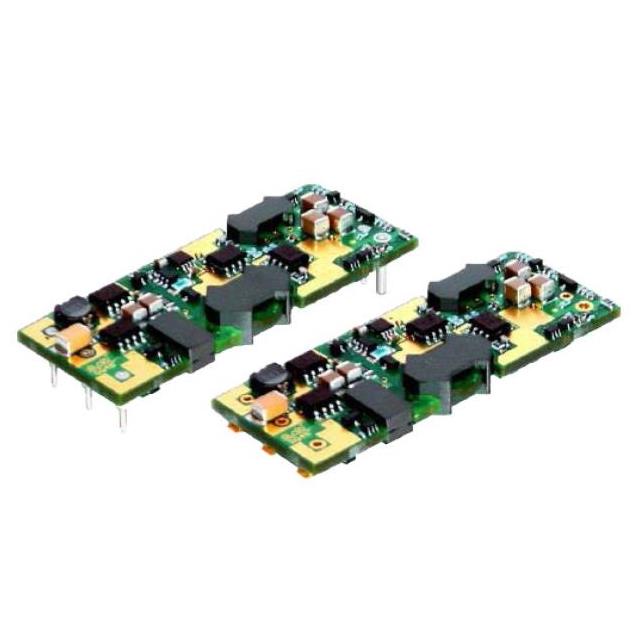

MODULE DC-DC 48VIN 1-OUT 1.5V 15A 50W 8-PIN 1/8-BRICK

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 48VIN 1-OUT 1.5V 15A 50W 8-PIN 1/8-BRICK

Technical Specifications

Parameters and characteristics for this part

MODULE DC-DC 48VIN 1-OUT 1.5V 15A 50W 8-PIN 1/8-BRICK

Part	Type	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Mounting Type	Supplier Device Package	Applications
Bel Power Solutions SQ48T03150-PCA0G	Isolated Module	36 V	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 A	15 V	0.9 "	2.3 in	12.7 mm	58.4 mm	0.5 in	22.8 mm	1	2000 V	Eighth Brick	75 V	85 °C	-40 °C	50 W	Through Hole	Eighth Brick	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 3.3A 36V - 75V Input

Technical documentation and resources

No documents available
