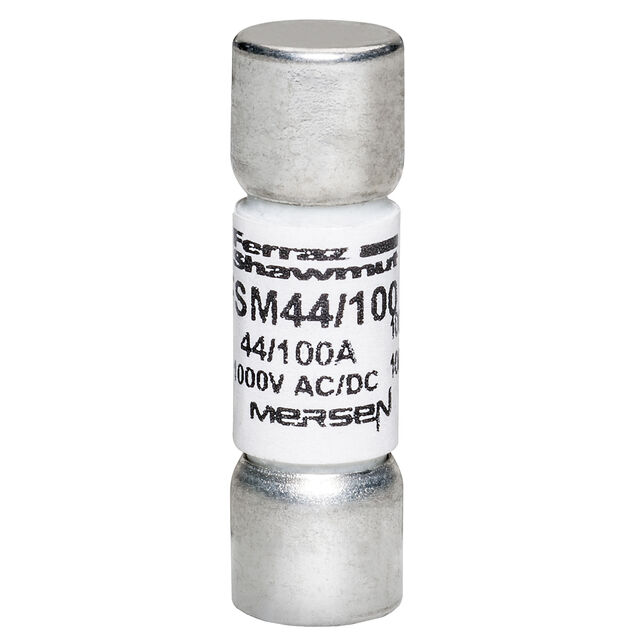

FSM44/100
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MULTI-METER,FAST ACTING,20K
FSM44/100
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,MULTI-METER,FAST ACTING,20K
Description
General part information
FSM44/100
440mA 1 kVAC 1 kVDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FSM44/100 |
|---|---|
| Applications | Electrical, Industrial, Multi-Meters |
| Approval Agency | UL, UR |
| Breaking Capacity | 20 kA |
| Current Rating | 0.44 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.375 in |
| Voltage Rating - AC | 1 kVAC |
| Voltage Rating - DC | 1 kV |
