87499-9

Active

TE Connectivity AMP Connectors

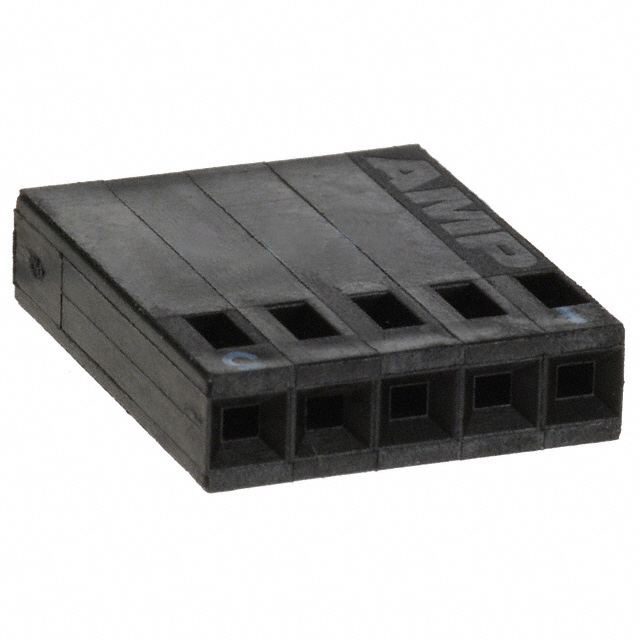

CONN RCPT HSG 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

87499-9

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		10	$ 1.09
		25	$ 1.04
		50	$ 1.02
		100	$ 0.98
		250	$ 0.89
		500	$ 0.80
		1000	$ 0.71
		2500	$ 0.64

Description

General part information

87499 Series

5 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87499-9	87499 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Insulation Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2 - 36
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

87499 Series

CONN RCPT HSG 11POS 2.54MM

Part	Contact Termination	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Note	Mounting Type	Contact Type	Insulation Material
TE Connectivity AMP Connectors 2-87499-0	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	11	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-6	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	14	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-8	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	15	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 4-87499-0	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	21	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 3-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	18	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 2-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	13	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 5-87499-4	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	28	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 3-87499-7	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	20	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 87499-3	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	2	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
TE Connectivity AMP Connectors 5-87499-8	Crimp	Black	1	-65 ░C	105 ░C	Receptacle	30	2.54 mm	0.1 in	Contacts Not Included	Free Hanging (In-Line)	Male or Female	Thermoplastic
