2834096

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2834096	28340 Series

Approval Agency	VDE, UL, EAC, cULus	VDE, UL, EAC, cULus
Coil Current	38 mA	19 - 75 mA
Coil Resistance	636 Ohms	18.79 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 230 VDC
Contact Form	4PDT (4 Form C)	DPDT (2 Form C), 4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)	Silver (Ag), Silver Nickel (AgNi)
Contact Rating (Current)	5 A	5 - 10 A
Features	-	Lighted Indicator, Diode, Test Button
Mounting Type	Socketable	Socketable
Operate Time	13 ms	10 - 13 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	5 ms	5 - 12 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Plug In	Plug In

RELAY GEN PURPOSE DPDT 10A 48V

Part	Coil Voltage	Relay Type	Switching Voltage	Termination Style	Mounting Type	Contact Material	Contact Rating (Current)	Coil Current	Approval Agency	Operate Time	Release Time	Features	Coil Type	Contact Form	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 2834038	48 VDC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	19 mA	cULus, EAC, UL, VDE	13 ms	5 ms	Diode, Lighted Indicator, Test Button	Non Latching	DPDT (2 Form C)	2560 Ohms	70 °C	-55 °C
Phoenix Contact 2834012	12 VDC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	75 mA	cULus, EAC, UL, VDE	13 ms	5 ms		Non Latching	DPDT (2 Form C)	160 Ohms	70 °C	-55 °C
Phoenix Contact 2834096	24 VDC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver Nickel (AgNi)	5 A	38 mA	cULus, EAC, UL, VDE	13 ms	5 ms		Non Latching	4PDT (4 Form C)	636 Ohms	70 °C	-55 °C
Phoenix Contact 2834025	24 VDC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver (Ag)	10 A	38 mA	cULus, EAC, UL, VDE	13 ms	5 ms	Diode, Lighted Indicator, Test Button	Non Latching	DPDT (2 Form C)	636 Ohms	70 °C	-55 °C
Phoenix Contact 2834083	12 VDC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver Nickel (AgNi)	5 A	75 mA	cULus, EAC, UL, VDE	13 ms	5 ms		Non Latching	4PDT (4 Form C)	160 Ohms	70 °C	-55 °C
Phoenix Contact 2834070	230 VAC	General Purpose	250 VAC, 250 VDC	Plug In	Socketable	Silver (Ag)	10 A		cULus, EAC, UL, VDE	10 ms	12 ms		Non Latching	DPDT (2 Form C)	18.79 kOhms	70 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

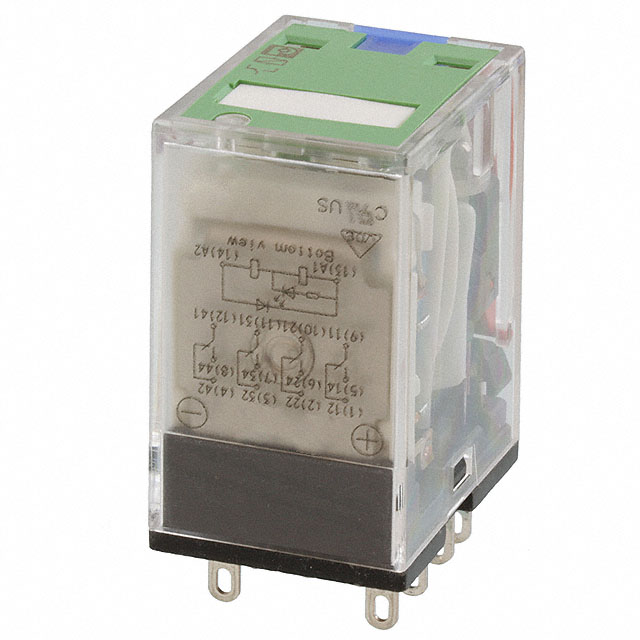

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
