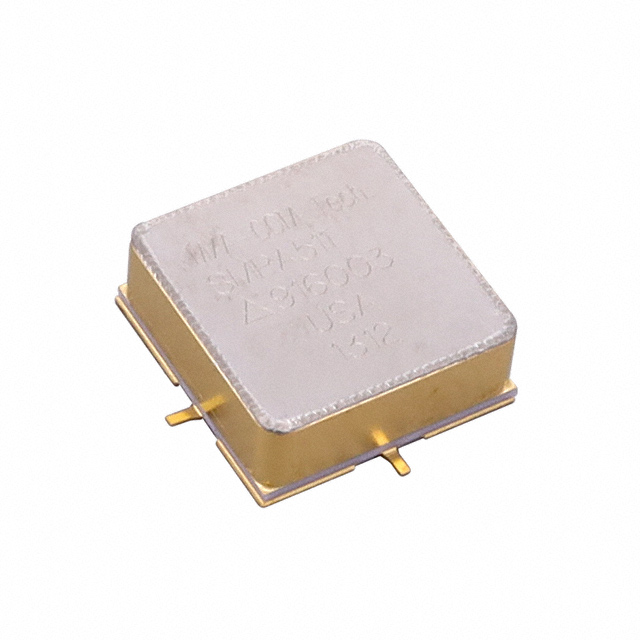

SMPA511
ActiveMACOM Technology Solutions
IC RF AMP GPS 5MHZ-600MHZ SMD
SMPA511
ActiveMACOM Technology Solutions
IC RF AMP GPS 5MHZ-600MHZ SMD
Description
General part information
SMPA511
RF Amplifier IC General Purpose 5MHz ~ 600MHz
Technical Specifications
Parameters and characteristics for this part
| Specification | SMPA511 |
|---|---|
| Current - Supply | 118 mA |
| Frequency (Max) | 600 MHz |
| Frequency (Min) | 5 MHz |
| Gain | 12.7 dB |
| Noise Figure | 4.6 dB |
| P1dB | 24.8 dBm |
| Package / Case | 4-SMD Module |
| RF Type | General Purpose |
| Test Frequency (Maximum) | 600 MHz |
| Test Frequency (Minimum) | 5 MHz |
| Voltage - Supply | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
