1778751
ActivePhoenix Contact

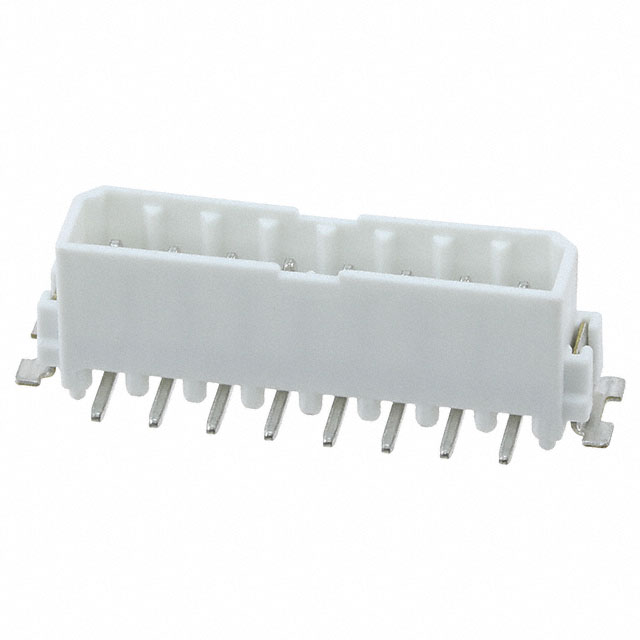

HEADER 8POS SMT WHITE
1778751
ActivePhoenix Contact
HEADER 8POS SMT WHITE
Description
General part information
1778751
SSL Connector 8 Position Header, Male Pins Board to Cable/Wire 0.098" (2.50mm) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1778751 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Tin |
| Current Rating | 5 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Housing Color | White |
| Housing Material | Nylon, Polyamide, PA |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Pitch | 0.098 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 150 VDC |
