IVCR2405DR

Active

Inventchip

GENERAL PURPOSE DRIVER, 24V, 4A

Search across all available documentation for this part.

Active

Inventchip

GENERAL PURPOSE DRIVER, 24V, 4A

Technical Specifications

Parameters and characteristics for this part

Specification	IVCR2405DR

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	4 A
Driven Configuration	Low-Side
Gate Type	N-Channel MOSFET, IGBT
Input Type	Non-Inverting, Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Rise / Fall Time (Typ) [custom]	6 ns
Rise / Fall Time (Typ) [custom]	6 ns
Supplier Device Package	8-SOIC
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	4.5 V

GENERAL PURPOSE DRIVER, 24V, 4A

Part	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Package / Case	Package / Case [y]	Package / Case [x]	Number of Drivers	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Gate Type	Driven Configuration
Inventchip IVCR2405DR	8-SOIC	20 V	4.5 V	Surface Mount	Independent	6 ns	6 ns	Inverting, Non-Inverting	8-SOIC	3.9 mm	0.154 in	2	4 A	4 A	-40 °C	125 °C	IGBT, N-Channel MOSFET	Low-Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

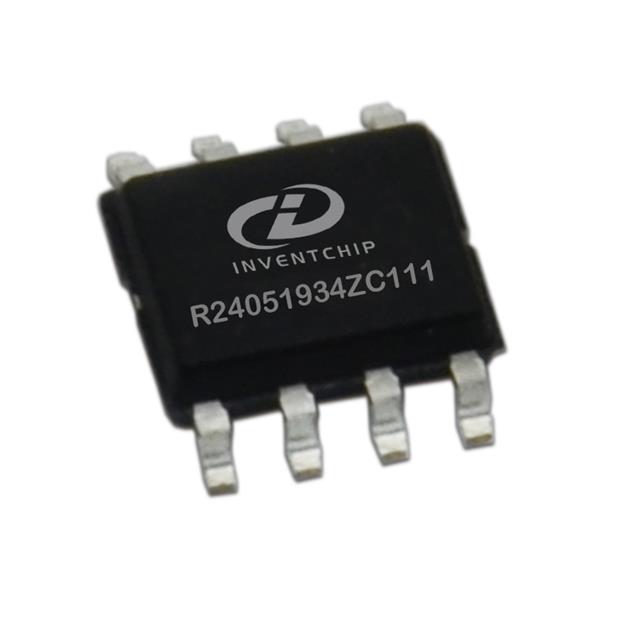

Low-Side Gate Driver IC Inverting, Non-Inverting 8-SOIC
