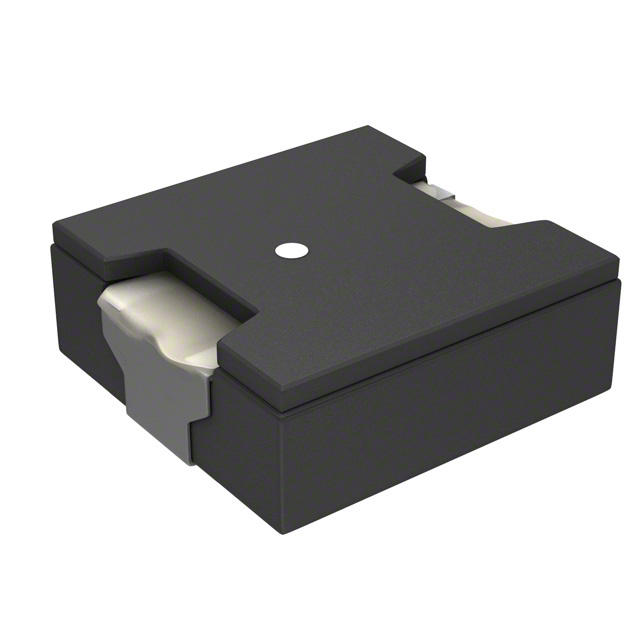

RLF12545T-100M5R1-PF
ObsoleteTDK Corporation
FIXED IND 10UH 5.1A 14.88MOHM SM
RLF12545T-100M5R1-PF
ObsoleteTDK Corporation
FIXED IND 10UH 5.1A 14.88MOHM SM
Description
General part information
RLF12545T-100M5R1-PF
10 µH Shielded Drum Core, Wirewound Inductor 5.1 A 14.88mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | RLF12545T-100M5R1-PF |
|---|---|
| Current - Saturation (Isat) | 6 A |
| Current Rating | 5.1 A |
| DC Resistance (DCR) (Max) | 14.88 mOhm |
| Height - Seated (Max) | 0.185 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
