Description
General part information

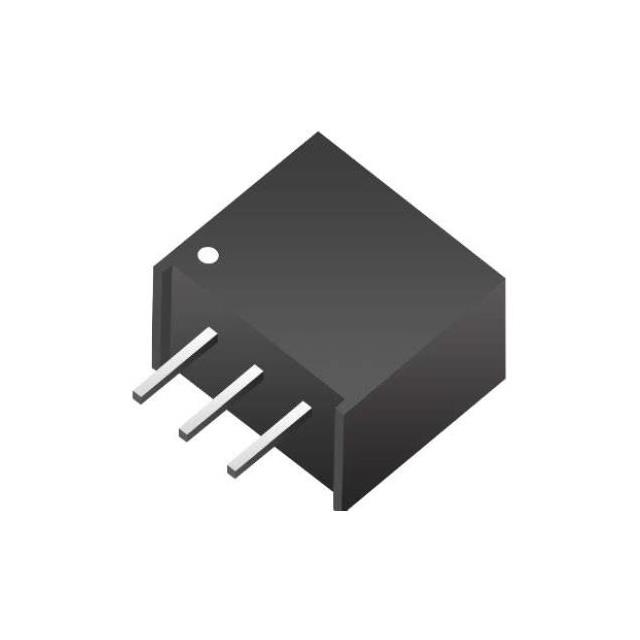

NL1-3P3-1A
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 4.75V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NL1-3P3-1A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 3.3 W |
| Size / Dimension Height | 0.41 in |
| Size / Dimension Length | 0.46 in |
| Size / Dimension Width | 0.3 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 4.75 V |
| Voltage - Output 1 | 3.3 V |
