TERM BLOCK 12POS 45DEG 3.5MM PCB
1989052
ActivePhoenix Contact
TERM BLOCK 12POS 45DEG 3.5MM PCB
Description
General part information
1989052

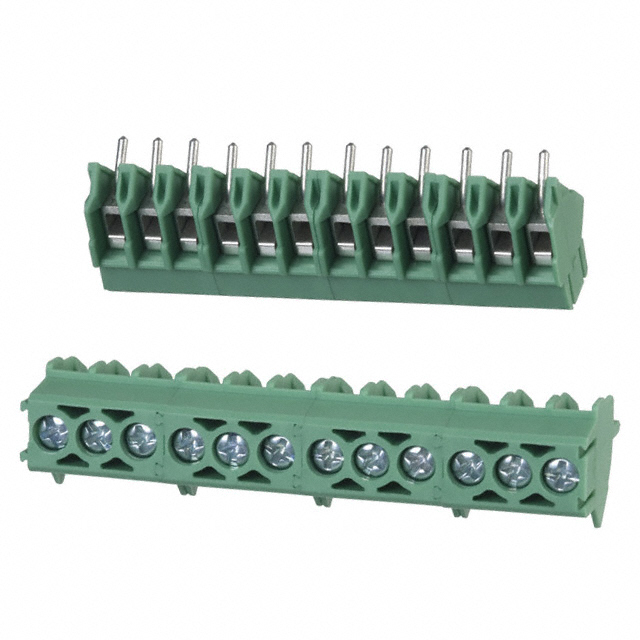

12 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1989052 |
|---|---|
| Color | Green |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 12 |
| Screw Thread | M2 |
| Torque - Screw (Maximum) | 0.25 Nm |
| Torque - Screw (Minimum) | 0.22 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Screw |
