392-029-558-104
ActiveEDAC Inc.

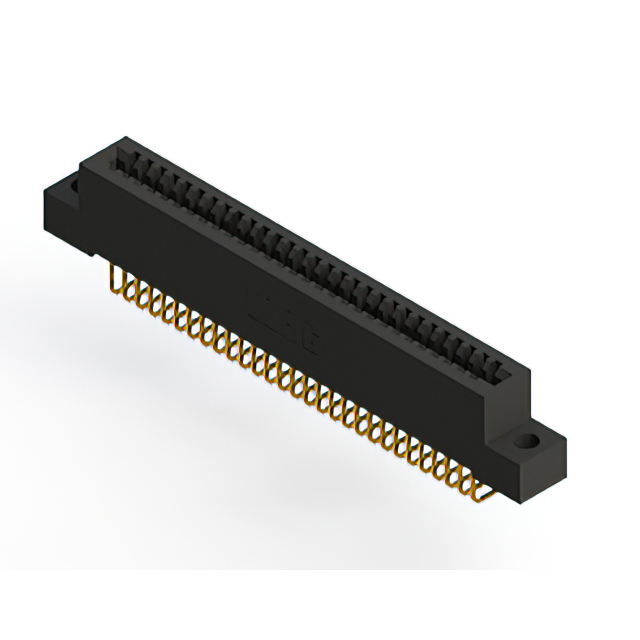

CARD EDGE CONNECTOR, 29 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-029-558-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 29 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-029-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 29 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
392-029 Series
| Part | Color | Contact Material | Material - Insulation | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions | Number of Rows | Number of Positions/Bay/Row | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Gender | Read Out | Contact Type | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Solder Wire Wrap | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole Right Angle | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Solder Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole Right Angle | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Solder Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole Right Angle | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
EDAC Inc. | Black | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 29 | 1 | 29 | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 1 | Through Hole | Gold | 10 Áin | 0.25 Ám | Female | Single | Cantilever | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-029 Series
29 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
