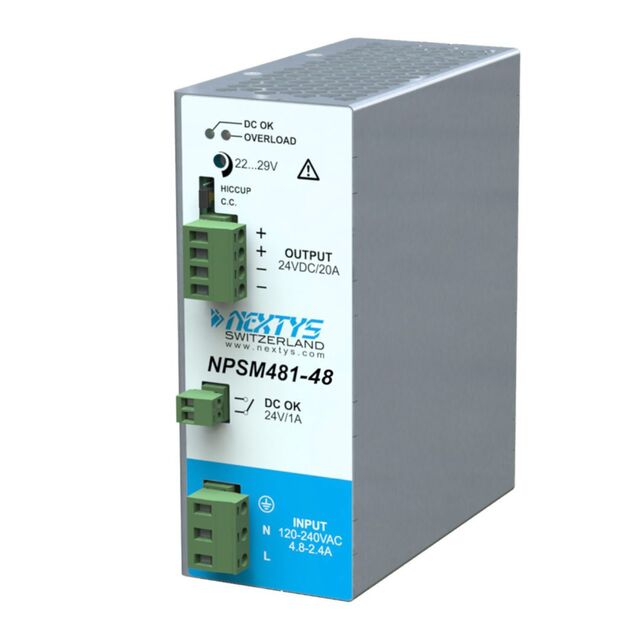

ASINPSM481-48
ActiveASI-Automation Systems Interconnect
48 VDC DIN RAIL POWER SUPPLY, UL
ASINPSM481-48
ActiveASI-Automation Systems Interconnect
48 VDC DIN RAIL POWER SUPPLY, UL
Description
General part information
ASINPSM481-48
48 VDC DIN RAIL POWER SUPPLY, UL
Technical Specifications
Parameters and characteristics for this part
| Specification | ASINPSM481-48 |
|---|---|
| AC Voltage - Input (Max) | 264 VAC |
| AC Voltage - Input (Min) | 90 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus |
| Current - Output (Max) | 6.7 A |
| DC Voltage - Input (Max) | 345 V |
| DC Voltage - Input (Min) | 110 V |
| Efficiency | 94 % |
| Features | IP20 |
| Input Type | AC or DC, DC, AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 322 W |
| Standard Number | 60950-1, UL 508 |
| Voltage - Isolation | 4200 VDC |
| Voltage - Output 1 | 48 V |
