Description
General part information

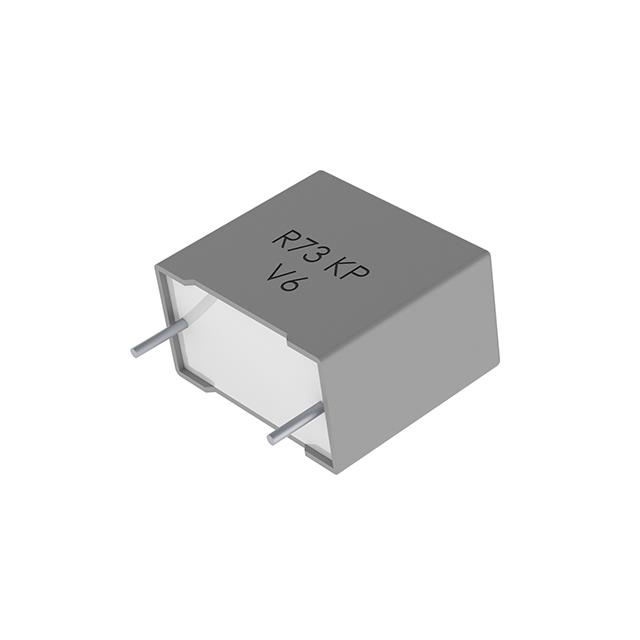

R73TI1180SE00J
1800 pF Film Capacitor 450V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R73TI1180SE00J |
|---|---|
| Applications | DC Link, High Frequency, Switching, DV/DT, Automotive, High Pulse, DC Filtering |
| Capacitance | 1800 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.437 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.197 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 450 V |
| Voltage Rating - DC | 1600 V |
