3240069
ActivePhoenix Contact
CONN RING CIRC 18-20AWG M2.5
3240069
ActivePhoenix Contact
CONN RING CIRC 18-20AWG M2.5
Description
General part information
3240069

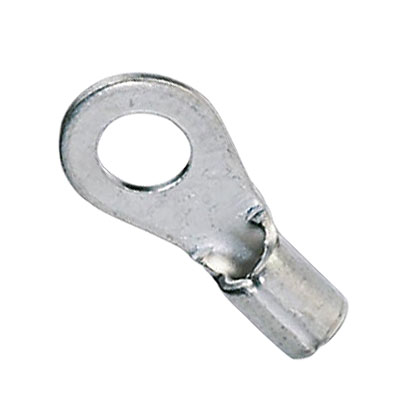

Ring Terminal Connector M2.5 Stud Circular 18-20 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240069 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Electrolytic Copper |
| Insulation | Non-Insulated |
| Length - Overall | 0.551 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M2.5 Stud |
| Stud/Tab Size | 2.5 mm |
| Stud/Tab Type | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.236 in |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
