TX16/9.1/4.7-3C94
ActiveFerroxcube
FERRITE CORE TOROID 3C94
TX16/9.1/4.7-3C94
ActiveFerroxcube
FERRITE CORE TOROID 3C94
Description
General part information
TX16/9.1/4.7-3C94

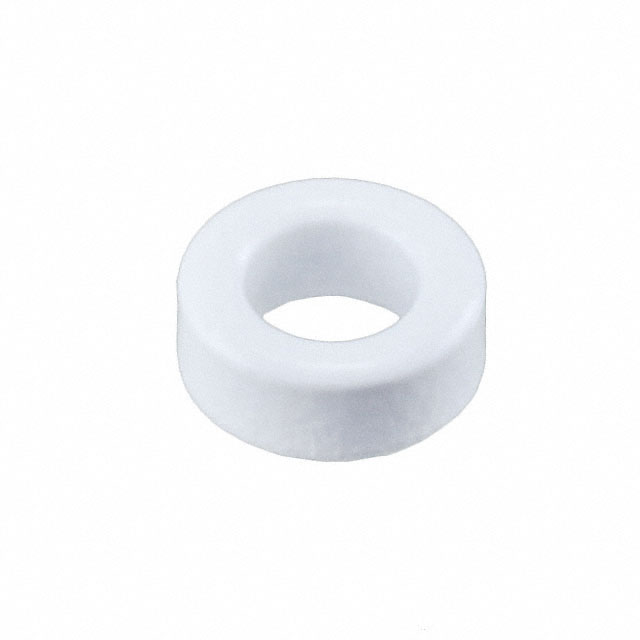

Epoxy 3C94 Ferrite Core Toroid Type Length Width 0.635" (16.13mm) Diameter 0.195" (4.95mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX16/9.1/4.7-3C94 |
|---|---|
| Core Factor (ΣI/A) | 2.53 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 2.53 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 0.635 in |
| Effective Area (Ae) | 14.7 mm² |
| Effective Length (le) | 37.2 mm |
| Effective Magnetic Volume (Ve) | 548 mm³ |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.195 in |
| Initial Permeability (µi) | 2300 |
| Material | 3C94 |
| Package Height | 4.7 mm |
| Package Length | 16 mm |
| Package Name | TX |
| Package Width | 9.1 mm |
| Tolerance | 20 % |
