1-1102584-2
ActiveTE Connectivity AMP Connectors

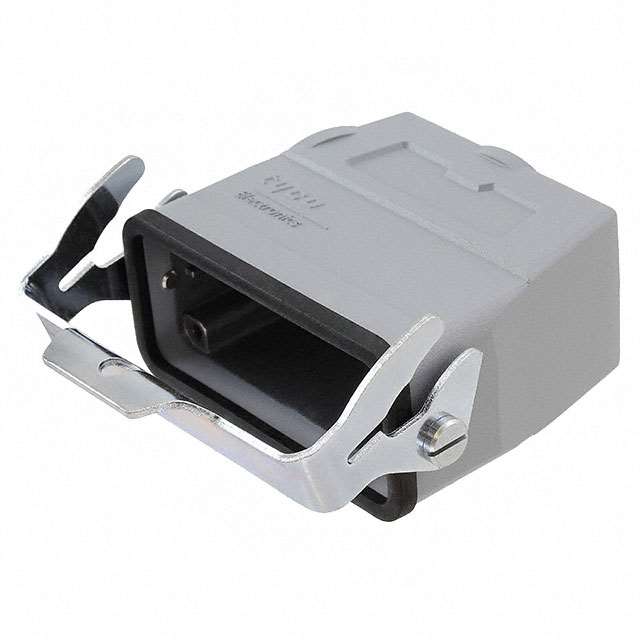

CONN HOOD CPLNG BOTTOM SZ6 PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102584-2
ActiveTE Connectivity AMP Connectors
CONN HOOD CPLNG BOTTOM SZ6 PG21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102584-2 | 1102584 Series |
|---|---|---|
| Connector Type | Hood - Coupling | Hood - Coupling |
| Features | Cable to Cable | Cable to Cable |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Hood Top | Locking Clip (1) on Hood Top, Locking Clip (2) on Hood Top |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 6 | 6 |
| Size / Dimension [x] | 93.5 mm | 93.5 mm |
| Size / Dimension [x] | 3.681 " | 3.681 " |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 3.15 " | 3.15 " |
| Size / Dimension [z] | 80 mm | 80 mm |
| Style | Bottom Entry | Bottom Entry |
| Thread Size | PG21 | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102584 Series
CONN HOOD CPLNG BOTTOM SZ6 PG21
| Part | Connector Type | Thread Size | Operating Temperature [Min] | Operating Temperature [Max] | Housing Finish | Ingress Protection | Lock Location | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Style | Housing Material | Features | Housing Color | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102584-2 | Hood - Coupling | PG21 | -40 °C | 80 C | Powder Coated | IP65 - Dust Tight, Water Resistant | Locking Clip (1) on Hood Top | 1.693 in | 93.5 mm | 3.15 " | 43 mm | 3.681 " | 80 mm | Bottom Entry | Aluminum Alloy, Die Cast | Cable to Cable | Gray | 6 |
TE Connectivity AMP Connectors 1-1102584-1 | Hood - Coupling | PG21 | -40 °C | 80 C | Powder Coated | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood Top | 1.693 in | 93.5 mm | 3.15 " | 43 mm | 3.681 " | 80 mm | Bottom Entry | Aluminum Alloy, Die Cast | Cable to Cable | Gray | 6 |
Description
General part information
1102584 Series
Hood - Coupling Connector Bottom Entry PG21 6 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
