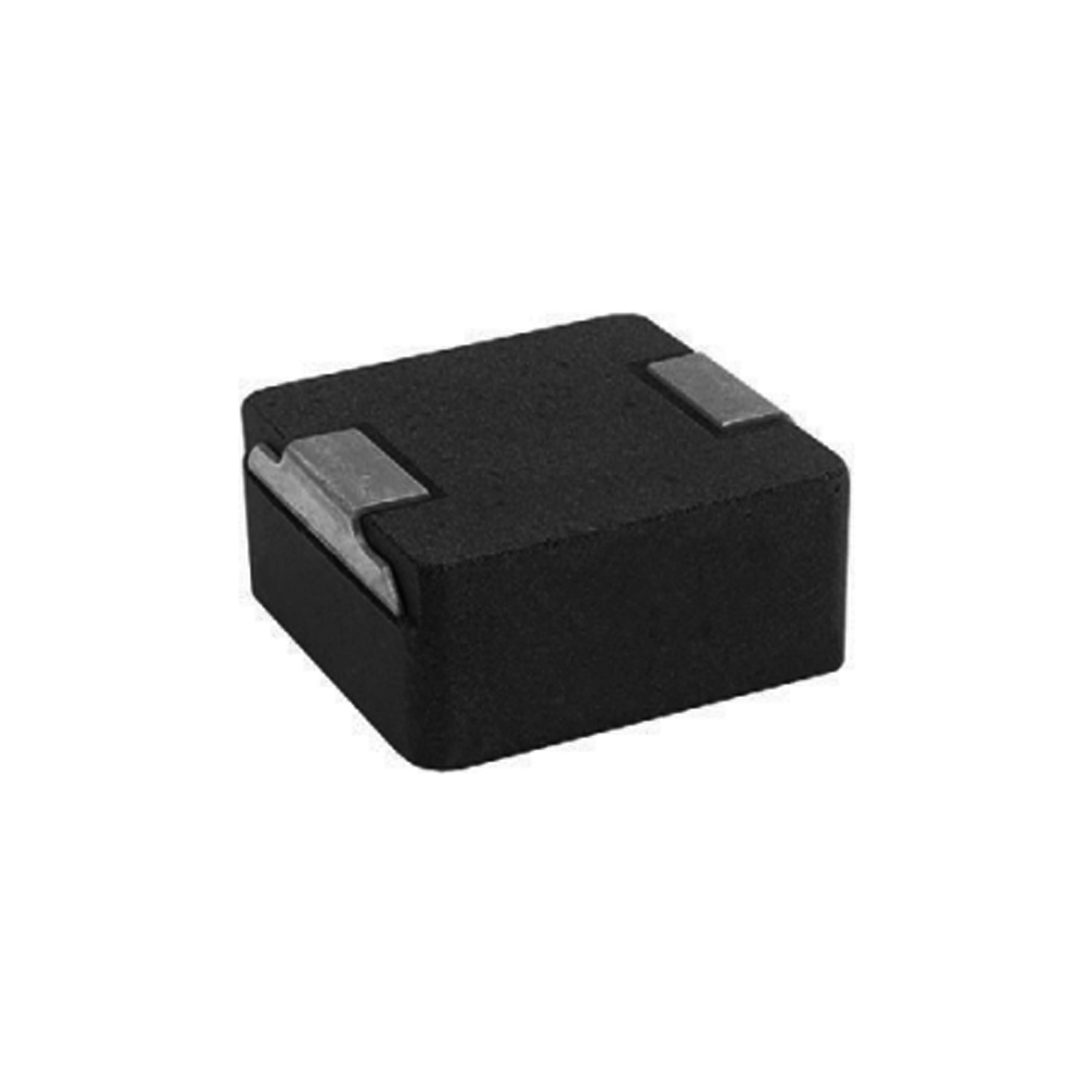

IFDC5050HZER3R3N
ActiveVishay Dale
FIXED IND 3.3UH 10.3A 13 MOHM SM
IFDC5050HZER3R3N
ActiveVishay Dale
FIXED IND 3.3UH 10.3A 13 MOHM SM
Description
General part information
IFDC5050HZER3R3N
3.3 µH Shielded Wirewound Inductor 10.3 A 13mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IFDC5050HZER3R3N |
|---|---|
| Current - Saturation (Isat) | 7.8 A |
| Current Rating | 10.3 A |
| DC Resistance (DCR) (Max) | 13 mOhm |
| Frequency - Self Resonant | 35 MHz |
| Height - Seated (Max) | 0.315 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.484 in |
| Size / Dimension Width | 0.484 in |
| Tolerance | 30 % |
| Type | Wirewound |
