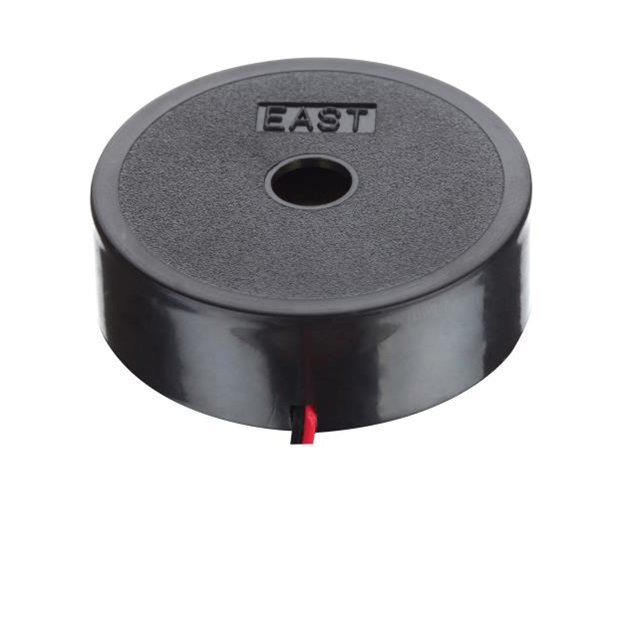

EFM-810
ActiveEast Electronics
BUZZER 12V 55MM WIRE
EFM-810
ActiveEast Electronics
BUZZER 12V 55MM WIRE
Description
General part information
EFM-810
Buzzers 12 V 5mA 3.5kHz 88dB @ 12V, 30cm Wire Lead Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-810 |
|---|---|
| Current - Supply | 5 mA |
| Frequency | 3.5 kHz |
| Height - Seated (Max) | 0.571 in |
| Mounting Type | Wire Lead |
| Operating Mode | Continuous |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 2.165 in |
| Sound Pressure Level (SPL) | 88 dB |
| Termination | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 28 V |
| Voltage Range (Min) | 3 V |
