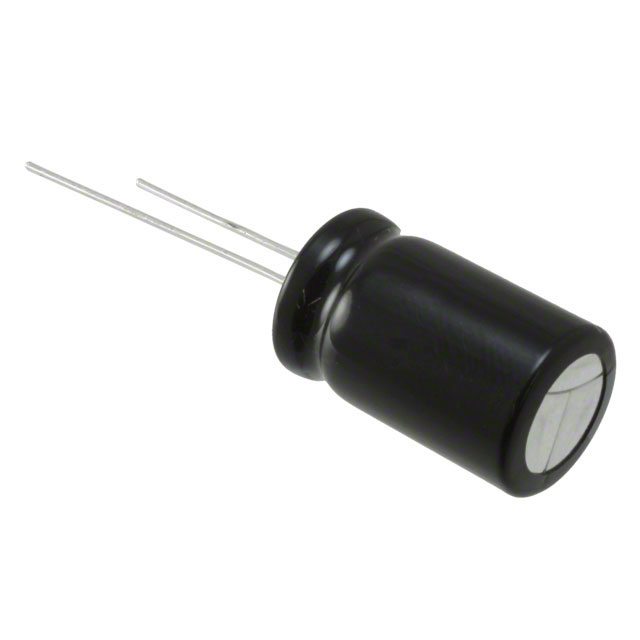

Specification	EEU-HD1H102

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max)	1.063 in
Lead Spacing	0.197 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	1.092 A, 950 mA
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	50 V

EEU-HD Series

...

Part	Tolerance	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	Lifetime	Mounting Type	Height - Seated (Max)	Lead Spacing	Voltage - Rated	Polarization	Size / Dimension Diameter	Capacitance	Applications
Panasonic Electronic Components EEU-HD1H471	20 %	Can Radial	-55 °C	105 °C	530 mA 795 mA	2000 Hrs	Through Hole	0.866 in	0.197 in	50 V	Polar	0.394 in	470 µF	General Purpose
Panasonic Electronic Components EEU-HD1V471	20 %	Can Radial	-55 °C	105 °C	460 mA 690 mA	2000 Hrs	Through Hole	0.689 in	0.197 in	35 V	Polar	0.394 in	470 µF	General Purpose
Panasonic Electronic Components EEU-HD1H680	20 %	Can Radial	-55 °C	105 °C	110 mA 165 mA	1000 Hrs	Through Hole	12.7 mm	0.098 in	50 V	Polar	0.248 in	68 µF	General Purpose
Panasonic Electronic Components EEU-HD1H681S	20 %	Can Radial	-55 °C	105 °C	650 mA 975 mA	2000 Hrs	Through Hole	16.51 mm	0.295 in	50 V	Polar	0.63 in	680 µF	General Purpose
Panasonic Electronic Components EEU-HD1H222	20 %	Can Radial	-55 °C	105 °C	1.47 A 1.69 A	2000 Hrs	Through Hole	1.319 in	0.295 in	50 V	Polar	0.63 in	2200 ĄF	General Purpose
Panasonic Electronic Components EEU-HD1E102B	20 %	Can Radial	-55 °C	105 °C	680 mA 782 mA	2000 Hrs	Through Hole	0.689 in	0.197 in	25 VAC	Polar	0.394 in	1000 µF	General Purpose
Panasonic Electronic Components EEU-HD1C221B	20 %	Can Radial	-55 °C	105 °C	180 mA 270 mA	1000 Hrs	Through Hole	12.7 mm	0.197 in	16 V	Polar	0.248 in	220 µF	General Purpose
Panasonic Electronic Components EEU-HD1E331B	20 %	Can Radial	-55 °C	105 °C	310 mA 465 mA	1000 Hrs	Through Hole	0.512 in	0.197 in	25 VAC	Polar	0.315 in	330 µF	General Purpose
Panasonic Electronic Components EEU-HD1A102	20 %	Can Radial	-55 °C	105 °C	460 mA 529 mA	2000 Hrs	Through Hole	0.551 in	0.197 in	10 V	Polar	0.394 in	1000 µF	General Purpose
Panasonic Electronic Components EEU-HD1V331	20 %	Can Radial	-55 °C	105 °C	350 mA 525 mA	2000 Hrs	Through Hole	0.551 in	0.197 in	35 V	Polar	0.394 in	330 µF	General Purpose
