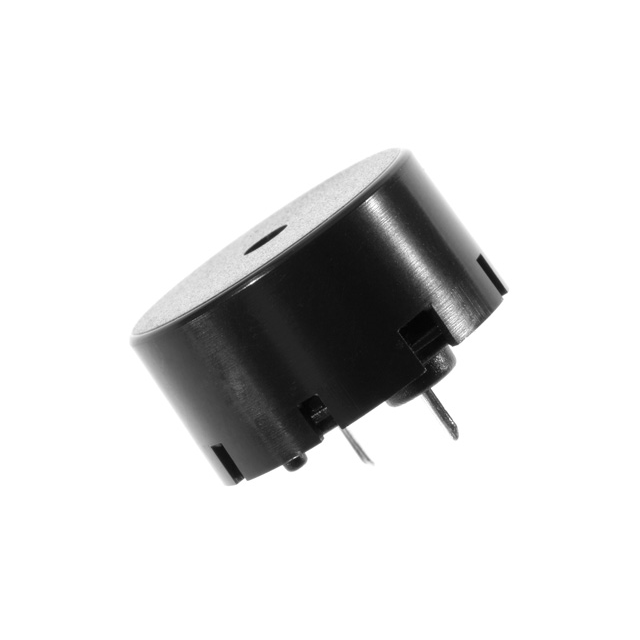

TP172009-1
ActiveDB Unlimited
AUDIO TRANSDUCER PIEZO 1V 25V 7MA 9V 78DBADBA THROUGH HOLE PIN
TP172009-1
ActiveDB Unlimited
AUDIO TRANSDUCER PIEZO 1V 25V 7MA 9V 78DBADBA THROUGH HOLE PIN
Description
General part information
TP172009-1
Buzzers Transducer, Externally Driven Piezo 9 V 7mA 2kHz Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | TP172009-1 |
|---|---|
| Current - Supply | 7 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2 kHz |
| Height - Seated (Max) | 0.406 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.669 in |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 9 VAC |
| Voltage Range (Max) | 25 V |
| Voltage Range (Min) | 1 V |
