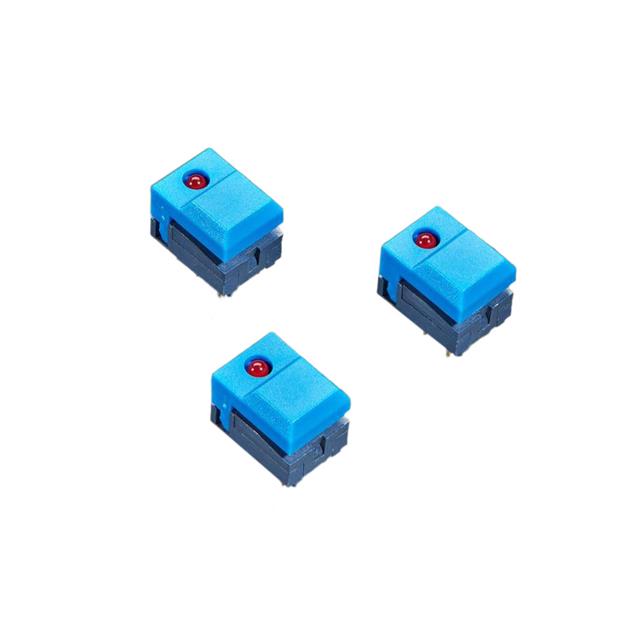

Specification	5517

Actuator Type	Square, Button
Circuit	SPDT
Color	Red
Color - Actuator/Cap	Blue
Current Rating	12 mA
Electrical Life (Cycles)	10000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	70 C, 70 °C
Operating Temperature (Min)	-20 C, -20 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard, Illuminated
Voltage Rating - DC	24 V
