1623697
ActivePhoenix Contact

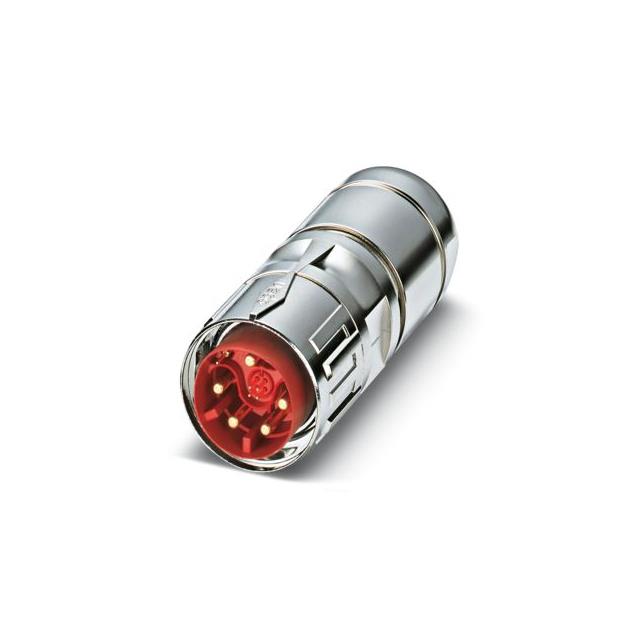

CABLE CONNECTOR STRAIGHT LONG SH
1623697
ActivePhoenix Contact
CABLE CONNECTOR STRAIGHT LONG SH
Description
General part information
1623697
13 (4 + 4 Data + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
Technical Specifications
Parameters and characteristics for this part
| Specification | 1623697 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Data) | 1 mm |
| Contact Size (Power) | 3.6 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included, Insert Not Included |
| Number of Positions | 13 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 2 ° |
| Position Types | PE, Power, Data |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M40-13 |
| Shielding | Shielded |
| Type | For Male Pins |
