1241.2806.183
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 125MA 48V
1241.2806.183
ActiveSCHURTER Inc.
SWITCH PUSH SPST-NO 125MA 48V
Description
General part information
1241.2806.183

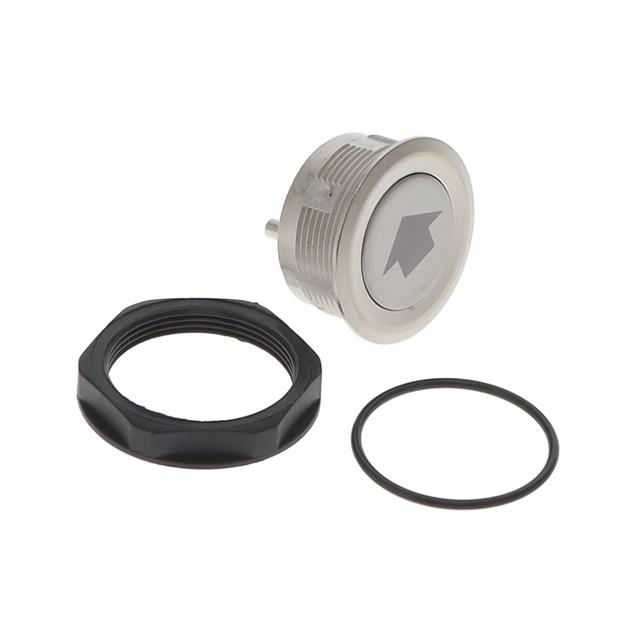

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241.2806.183 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating | 125 mA |
| Electrical Life (Cycles) | 1000000 Cycles |
| Features | Tactile Feedback |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal |
| Voltage Rating - DC | 48 V |
