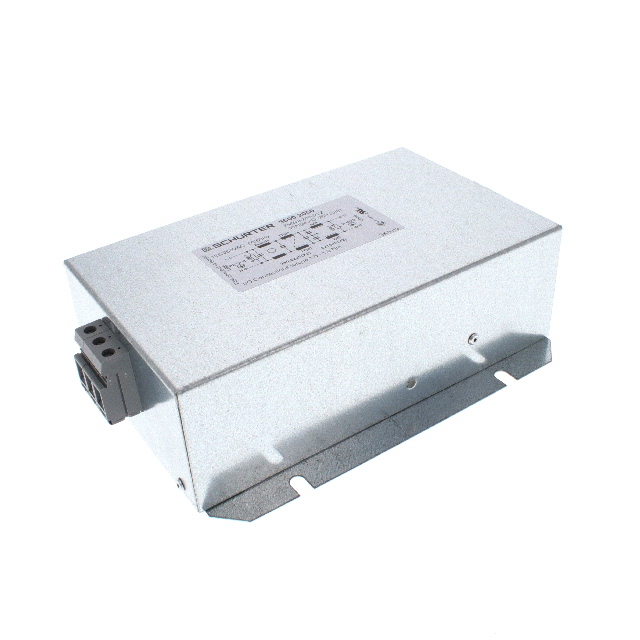

5500.2050
ObsoleteSCHURTER Inc.
LINE FILTER 125/250VAC 30A CHAS
5500.2050
ObsoleteSCHURTER Inc.
LINE FILTER 125/250VAC 30A CHAS
Description
General part information
5500.2050
Single Phase EMC/EMI Line Filter 30 A 125V, 250V 50/60Hz Three Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500.2050 |
|---|---|
| Applications | General Purpose |
| Approval Agency | ENEC, cURus, VDE |
| Configuration | Three Stage |
| Current | 30 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 125V, 250V |
