Description
General part information
0804163

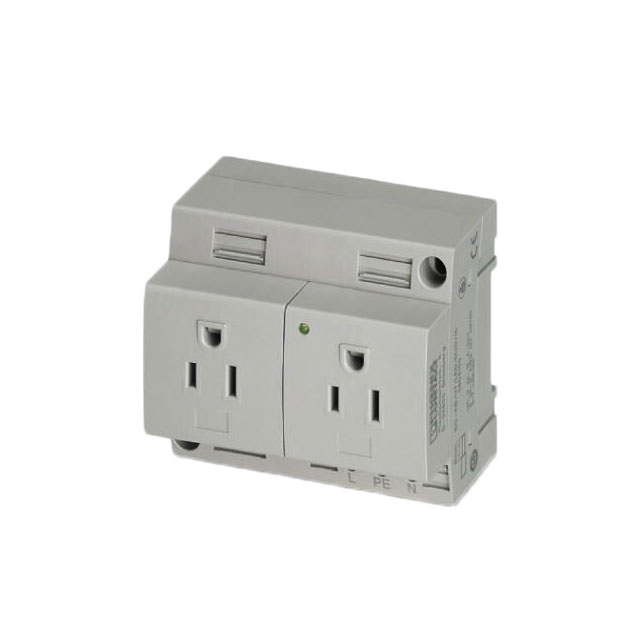

Power Connector Receptacle, Female Sockets NEMA 5-15R DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 0804163 |
|---|---|
| Approval Agency | cULus, cUL, UL |
| Connector Style | NEMA 5-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 15 A |
| Features | LED Indicator |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Connections | 2 |
| Number of Positions (per connection) | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
