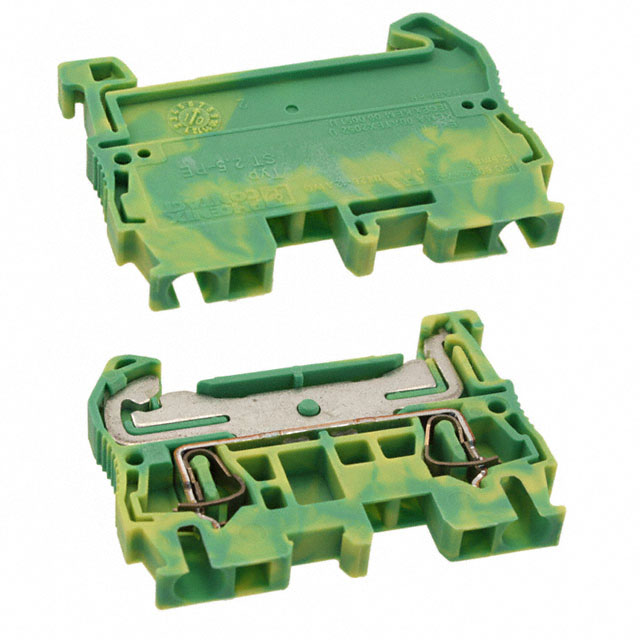

Specification	3031238

Color	Yellow, Green
Material - Insulation	Polyamide, PA, Nylon
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	10 mm
Terminal Width	5.2 mm
Termination Style	Push In, Spring
Type	Earth, Ground
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²

ST Series

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Part	Stripping Length	Material Flammability Rating	Material - Insulation	Voltage - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Termination Style	Type	Number of Positions	Color	Terminal Width	Current - UL	Current - IEC	Number of Levels	Voltage - UL	Grounded Levels	Type (Count)	Shielding	Note	Features	Contact Size	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Insert Material	Orientation	Contact Type	Mounting Type	Fastening Type	Position Types	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Shell Material	Housing Color
Phoenix Contact 3037258	10 mm	UL94 V-0	Nylon PA Polyamide	500 V	25.5 AWG	14 AWG	0.08 mm²	1.5 mm²	Push In Spring	Feed Through	3	Orange	4.2 mm	15 A	17.5 A	1	300 V
Phoenix Contact 3209060				250 V	28 AWG	12 AWG	0.08 mm²	4 mm²	Push In Spring	Feed Through Isolated (3)	5	Gray	5.2 mm	18 A	18 A	2	300 V	1
Phoenix Contact 3031416	10 mm	UL94 V-0	Nylon PA Polyamide		28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Earth Ground	3	Green Yellow	6.2 mm			1
Phoenix Contact 1607690
Phoenix Contact 3209015				250 V	28 AWG	12 AWG	0.08 mm²	4 mm²	Push In Spring	Feed Through Feed Through Isolated Isolated (2)	4	Gray	5.2 mm	18 A	18 A	2	300 V		2
Phoenix Contact 3031500					24 AWG	8 AWG	0.2 mm²	10 mm²	Push In Spring	Earth Ground	2	Green Yellow	8.2 mm			1
Phoenix Contact 1607719										For Female Sockets	6									Shielded	Contacts Not Included	Backshell Coupling Nut	1 mm	Dust Tight Waterproof	IP67	Circular	Nylon 6/6 PA66 Polyamide	N (Normal)	Crimp	Free Hanging (In-Line)	Threaded	PE	M17-6	125 °C	-40 °C	Plug Housing	Gadolinium-Zinc	Silver
Phoenix Contact 3037384	10 mm	UL94 V-0	Nylon PA Polyamide	800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Feed Through	3	Green	6.2 mm	30 A	32 A	1	600 V
Phoenix Contact 3037782	10 mm	UL94 V-0	Nylon PA Polyamide	800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Feed Through	4	Gray	6.2 mm		1.5 A	1						Diode
Phoenix Contact 3038639				800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Isolated	4	Gray	6.2 mm	30 A	28 A	1	600 V
