1827948
ActivePhoenix Contact
HEADER NOMINAL CURRENT: 12 A NUM
1827948
ActivePhoenix Contact
HEADER NOMINAL CURRENT: 12 A NUM
Description
General part information
1827948

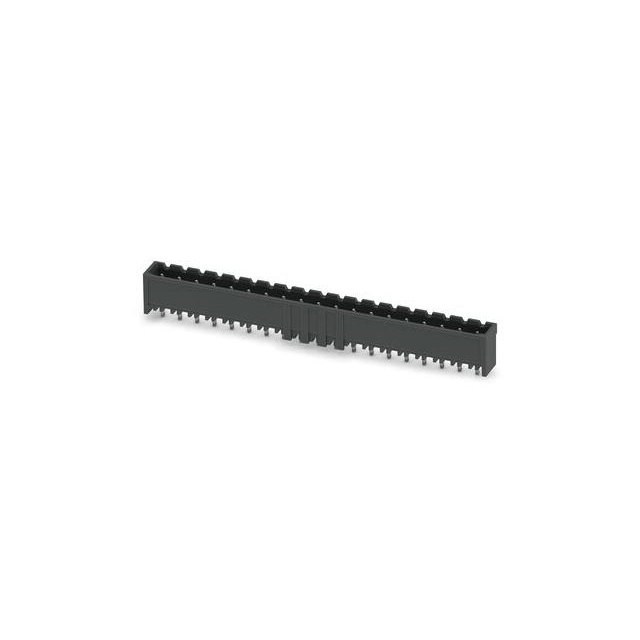

19 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1827948 |
|---|---|
| Color | Black |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.102 in |
| Current - IEC | 12 A |
| Header Orientation | Vertical |
| Housing Material | Liquid Crystal Polymer, LCP |
| Insulation Height | 0.472 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 19 |
| Pitch | 5.08 mm |
| Positions Per Level | 19 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
