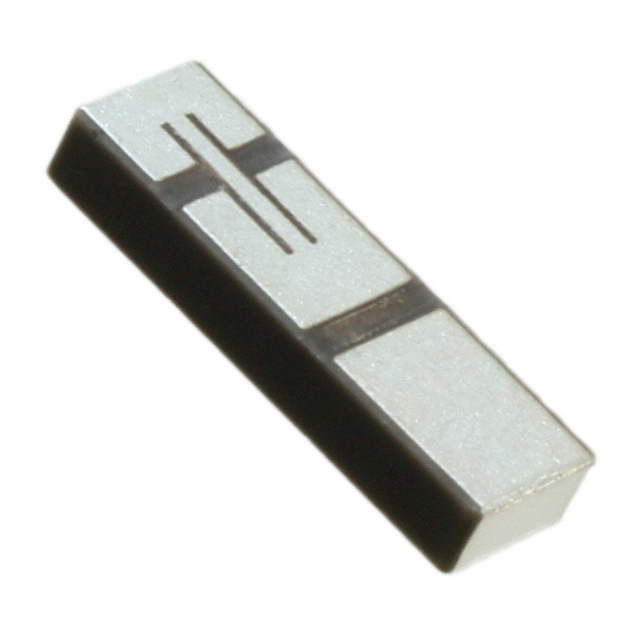

W3006
ActivePulse Electronics
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
W3006
ActivePulse Electronics
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Description
General part information
W3006
RF ANTENNA WLAN, Zigbee™ Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | W3006 |
|---|---|
| Antenna Type | Chip |
| Applications | Zigbee™, WLAN |
| Frequency (Band) | 5.5 GHz |
| Frequency (Center) | 2.4 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.483 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 3.2 dBi, 4.2 dBi |
| Height (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Return Loss | -8dB, -10dB |
| Return Loss | -10 dB, -8 dB |
| RF Family/Standard | 802.15.4, WiFi |
| Termination | Solder |
