092315 Series

Part	Cable Termination	Number of Rows	Contact Finish	Contact Finish Thickness	Pitch - Cable	Number of Positions	Shielding	Color	Length	Pitch - Connector	Connector Type

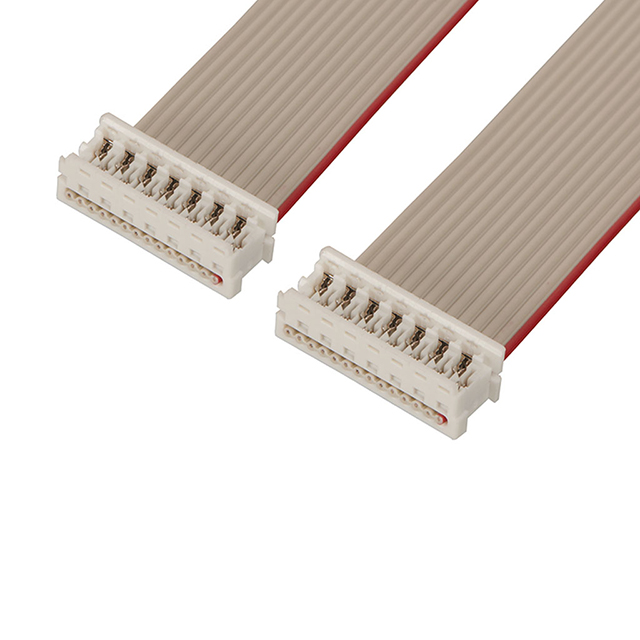

Molex 0923151416	IDC	1	Tin	80 µin	0.05 in	14	Unshielded	Gray Ribbon	0.525 ft	0.05 in	Socket to Socket
Molex 0923152607	IDC	1	Tin	80 µin	0.05 in	26	Unshielded	Gray Ribbon	0.23 ft	0.05 in	Socket to Socket
Molex 0923150420	IDC	1	Tin	80 µin	0.05 in	4	Unshielded	Gray Ribbon	0.656 ft	0.05 in	Socket to Socket
Molex 0923151020	IDC	1	Tin	80 µin	0.05 in	10	Unshielded	Gray Ribbon	0.656 ft	0.05 in	Socket to Socket
Molex 0923150401	IDC	1	Tin	80 µin	0.05 in	4	Unshielded	Gray Ribbon	3.28 ft	0.05 in	Socket to Socket
Molex 0923150810	IDC	1	Tin	80 µin	0.05 in	8	Unshielded	Gray Ribbon	0.328 ft	0.05 in	Socket to Socket
Molex 0923150650	IDC	1	Tin	80 µin	0.05 in	6	Unshielded	Gray Ribbon	1.64 ft	0.05 in	Socket to Socket
Molex 0923151601	IDC	1	Tin	80 µin	0.05 in	16	Unshielded	Gray Ribbon	3.28 ft	0.05 in	Socket to Socket
Molex 0923151615	IDC	1	Tin	80 µin	0.05 in	16	Unshielded	Gray Ribbon	0.492 ft	0.05 in	Socket to Socket
Molex 0923150802	IDC	1	Tin	80 µin	0.05 in	8	Unshielded	Gray Ribbon	3.44 ft	0.05 in	Socket to Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
