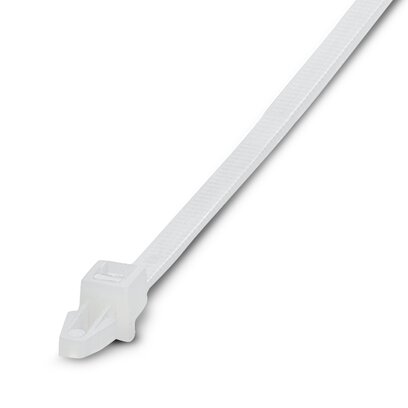

3240801
ActivePhoenix Contact
CABLE TIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240801
ActivePhoenix Contact
CABLE TIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240801 | WT-R HF Series |
|---|---|---|
| Color | Transparent | Transparent |
| Length - Actual | - | 200 mm |
| Length - Actual | - | 0.656 ft |
| Length - Actual | - | 7.87 " |
| Length - Actual [x] | 5.91 " | 5.91 " |
| Length - Actual [x] | 150 mm | 150 mm |
| Length - Actual [x] | 0.492 ft | 0.492 ft |
| Length - Approximate | - | 7.75 in |
| Length - Approximate [x] | 6 in | 6 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Push Mount, Arrowhead | Push Mount, Arrowhead |
| Width | - | 4.8 mm |
| Width | - | 0.189 in |
| Width [x] | 0.142 in | 0.142 in |
| Width [x] | 3.61 mm | 3.61 mm |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
WT-R HF Series
CABLE TIE
| Part | Length - Actual [x] | Length - Actual [x] | Length - Actual [x] | Wire/Cable Tie Type | Length - Approximate [x] | Color | Width [x] | Width [x] | Mounting Type | Material | Width [y] | Width [y] | Length - Actual | Length - Actual | Length - Actual | Length - Approximate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240801 | 5.91 " | 150 mm | 0.492 ft | Locking, Standard | 6 in | Transparent | 0.142 in | 3.61 mm | Arrowhead, Push Mount | Polyamide (PA66), Nylon 6/6 | ||||||
Phoenix Contact 3240803 | Locking, Standard | Transparent | Arrowhead, Push Mount | Polyamide (PA66), Nylon 6/6 | 4.8 mm | 0.189 in | 200 mm | 0.656 ft | 7.87 " | 7.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.04 | |||
Description
General part information
WT-R HF Series
Standard, Locking Transparent 0.142" (3.61mm)
