015001000200
ActiveIndustrial Shields

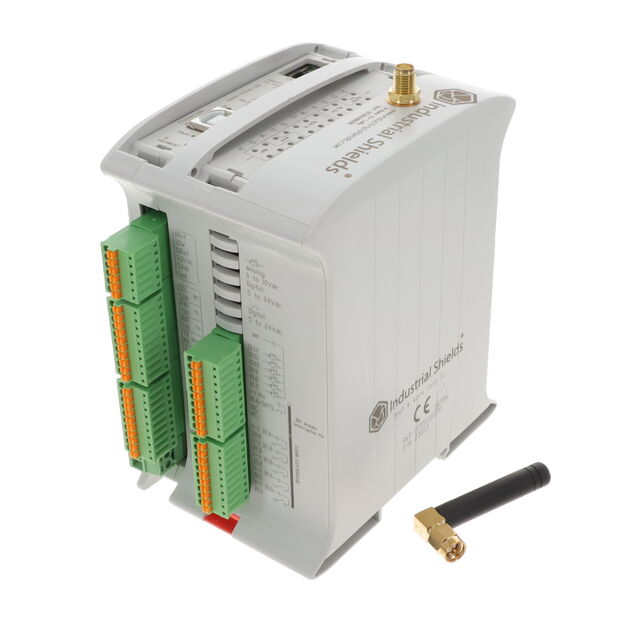

M-DUINO PLC ARDUINO ETH & LORA 2
015001000200
ActiveIndustrial Shields
M-DUINO PLC ARDUINO ETH & LORA 2
Description
General part information
015001000200
Programmable Logic Controller (PLC) DIN Rail 12 ~ 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 015001000200 |
|---|---|
| Communications | USB, RS-232, RS-485, Ethernet |
| Input Types | Digital, Analog/Digital |
| Maximum Expandable Modules | 127 Modules |
| Mounting Type | DIN Rail |
| Number of Digital Inputs | 6 |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Digital (5), Analog/Digital (3) |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
