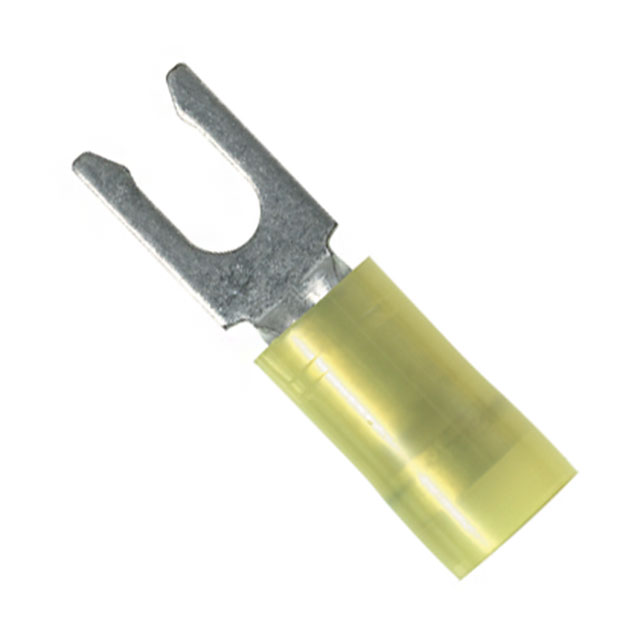

Specification	PN10-8LF-L

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Butted Seam
Insulation	Insulated
Insulation Diameter	0.225 in
Length - Overall	1.05 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.16 in
Width - Outer Edges	0.3 in
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

PN10 Series

Part	Insulation	Width - Outer Edges	Termination	Features	Thickness	Color	Contact Finish	Terminal Type	Contact Material	Length - Overall	Mounting Type	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation Diameter	Material - Insulation	Tongue Inside Opening	Stud/Tab Size (Type)	Stud/Tab Size	Insulation Diameter (Min)	Insulation Diameter (Max)
Panduit Corp PN10-6R-2K	Insulated	0.382 in	Crimp	Serrated Termination	0.04 in	Yellow	Tin	Circular	Copper	1.063 in	Free Hanging (In-Line)	6 Stud	12 AWG	10 AWG	0.23 in	Nylon PA Polyamide
Panduit Corp PN10-10FF-D	Insulated	0.37 in	Crimp	Brazed Seam Serrated Termination		Yellow	Tin	Flanged	Copper	1.05 in	Free Hanging (In-Line)	10 Stud	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide	0.2 in
Panduit Corp PN10-56R-D	Insulated	0.52 in	Crimp		0.04 in	Yellow	Tin	Circular	Copper	1.21 in	Free Hanging (In-Line)	0.3125 in	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide		Stud	16 Stud 5 Stud
Panduit Corp PN10-10R-L	Insulated	0.38 in	Crimp		0.04 in	Yellow	Tin	Circular	Copper	1.06 in	Free Hanging (In-Line)	10 Stud	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide
Panduit Corp PN10-8RN-D	Insulated	0.311 in	Crimp		0.04 in	Yellow	Tin	Circular	Copper	1.04 in	Free Hanging (In-Line)	8 Stud	12 AWG	10 AWG		Nylon PA Polyamide				0.12 in	0.225 in
Panduit Corp PN10-38R-2K	Insulated	0.58 in	Crimp	Serrated Termination	0.04 in	Yellow	Tin	Circular		1.29 in	Free Hanging (In-Line)	0.375 in	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide			3 Stud 8 Stud
Panduit Corp PN10-14F-D	Insulated	0.49 in	Crimp			Yellow	Tin	Standard	Copper	1.14 in	Free Hanging (In-Line)	0.25 Stud	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide	0.27 in
Panduit Corp PN10-6F-D	Insulated	0.31 in	Crimp	Butted Seam		Yellow	Tin	Standard	Copper	1 in	Free Hanging (In-Line)	6 Stud	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide	0.15 in
Panduit Corp PN10-12R-E	Insulated	0.72 in	Crimp	Serrated Termination	0.04 in	Yellow	Tin	Circular	Copper	1.47 in	Free Hanging (In-Line)	0.5 Stud	12 AWG	10 AWG		Nylon PA Polyamide				0.12 in	0.225 in
Panduit Corp PN10-8FF-L	Insulated	0.37 in	Crimp	Brazed Seam Serrated Termination		Yellow	Tin	Flanged	Copper	1.05 in	Free Hanging (In-Line)	8 Stud	12 AWG	10 AWG	0.225 in	Nylon PA Polyamide	0.17 in
