6791212332F

Active

DIALIGHT

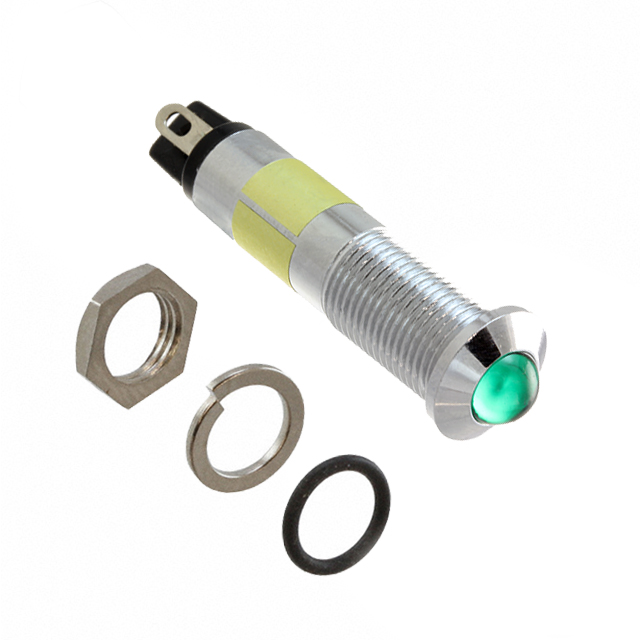

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 525NM 25000MCD 2-PIN

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 525NM 25000MCD 2-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	6791212332F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Green
Lens Size [diameter]	6 mm
Lens Style	Round with Domed Top
Millicandela Rating	5870 mcd
Panel Cutout Dimensions [custom]	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	12 V

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 525NM 25000MCD 2-PIN

Part	Type	Ingress Protection	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Ratings	Lens Size [diameter]	Current	Termination Style	Lamp Color	Voltage	Panel Cutout Shape	Millicandela Rating	Lens Style
DIALIGHT 6791212332F	LED	IP66, NEMA 4X	0.37 in	9.4 mm	DC	6 mm	30 mA	Solder Lug	Green	12 V	Round	5870 mcd	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 12V 30mA Solder Lug
