TMA166P-L

Obsolete

Sanken Electric USA Inc.

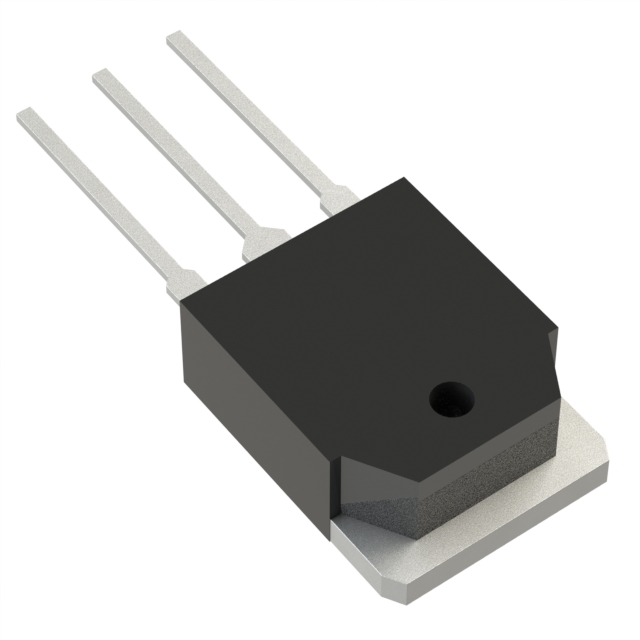

TRIAC 600V 16A TO3P

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

TRIAC 600V 16A TO3P

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMA166P-L	TMA166 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	30 mA	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	160 - 168 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	190 A	190 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	180 A	180 A
Current - On State (It (RMS)) (Max)	16 A	16 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	TO-3P-3 Full Pack	TO-3P-3 Full Pack, TO-220-3, TO-220-3 Full Pack
Supplier Device Package	TO-3P	TO-3P, TO-220-3, TO-3PF, TO-220F
Triac Type	Standard	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.5 V
Voltage - Off State	600 V	600 V

TRIAC 600V 16A TO3P

Part	Package / Case	Configuration	Voltage - Off State	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Triac Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Sanken Electric USA Inc. TMA166P-L	TO-3P-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-3P	Through Hole	180 A	190 A	1.5 V
Sanken Electric USA Inc. TMA166G-L	TO-220-3	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-220-3	Through Hole			1.5 V	160 A, 168 A
Sanken Electric USA Inc. TMA166B-L	TO-3P-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-3PF	Through Hole	180 A	190 A	1.5 V
Sanken Electric USA Inc. TMA166S-L	TO-220-3 Full Pack	Single	600 V	16 A	30 mA	Standard	-40 °C	125 ¯C	TO-220F	Through Hole			1.5 V	160 A, 168 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Standard 600 V 16 A Through Hole TO-3P
