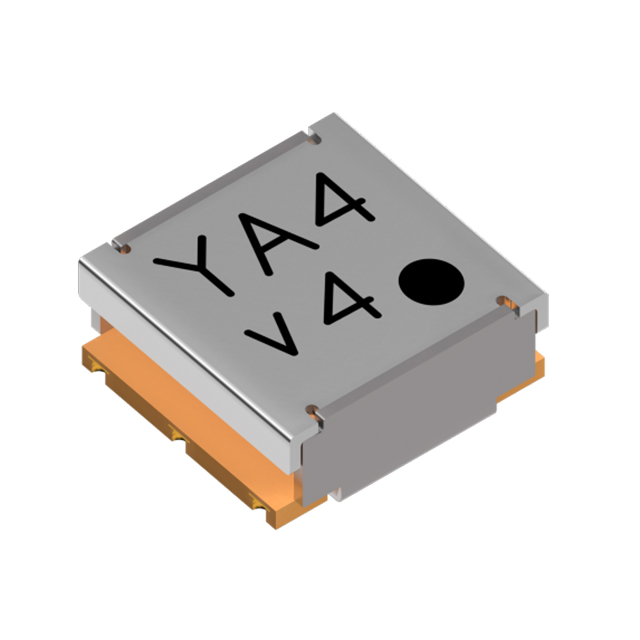

CU4S0509BT-3700-00
ObsoleteTDK Corporation
ISOLATOR, CU4S0509 SERIES, CCW,
CU4S0509BT-3700-00
ObsoleteTDK Corporation
ISOLATOR, CU4S0509 SERIES, CCW,
Description
General part information
CU4S0509BT-3700-00
ISOLATOR, CU4S0509 SERIES, CCW,
Technical Specifications
Parameters and characteristics for this part
| Specification | CU4S0509BT-3700-00 |
|---|---|
| Frequency (Max) | 3.8 GHz |
| Frequency (Min) | 3.6 GHz |
| Insertion Loss (Max) | 1.1 dB |
| Isolation (Min) | 9 dB |
| Package / Case | No Lead, 6-SMD |
| Package Name | 6-SMD |
| Power - Average Forward | 5 W |
| Type | Isolator |
| VSWR | 1.8 |
