PEWAN034-15KF
ActivePasternack

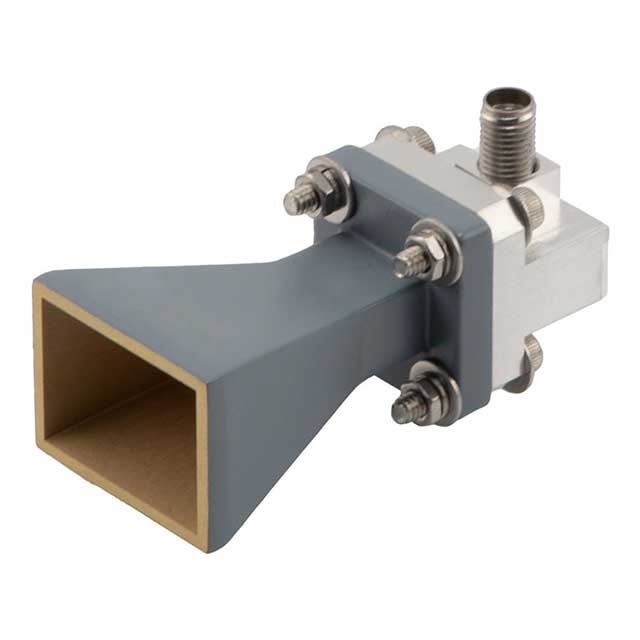

WR34 GAIN HORN 22-33GHZ 15DBI
PEWAN034-15KF
ActivePasternack
WR34 GAIN HORN 22-33GHZ 15DBI
Description
General part information
PEWAN034-15KF
RF ANTENNA Horn 2.92mm Female Waveguide Flange Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN034-15KF |
|---|---|
| Antenna Type | Horn |
| Frequency (Center/Band) | 27.5 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 33 GHz |
| Frequency Range (Min) | 22 GHz |
| Gain | 15 dBi |
| Height (Max) | 2.635 in |
| Mounting Type | Waveguide Flange Mount |
| Number of Bands | 1 |
| Termination | Female |
| Termination Gender | Female |
| Termination Pin Count | 0 pins |
| Termination Pitch | 2.92 mm |
| Termination Rows | 0 rows |
| Termination Size | 2.92 mm |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
