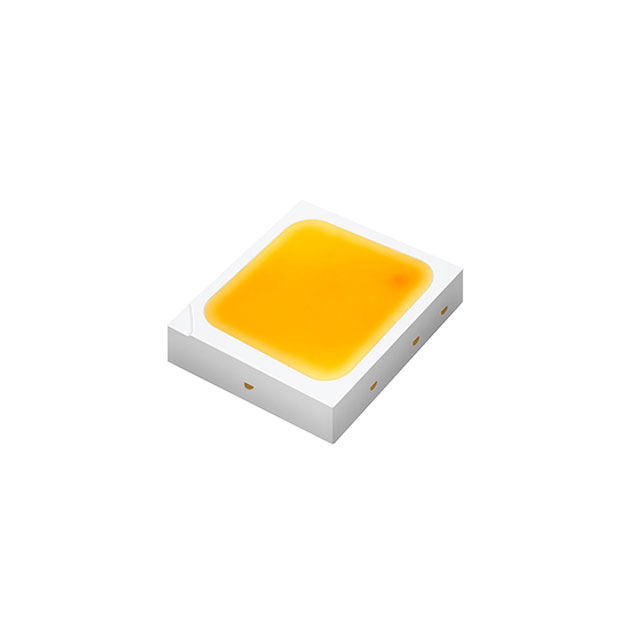

SPMWHT328FD5WAR0S0
Samsung Semiconductor, Inc.
LED LM301A COOL WHITE 5000K 3030
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPMWHT328FD5WAR0S0
Samsung Semiconductor, Inc.
LED LM301A COOL WHITE 5000K 3030
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SPMWHT328FD5WAR0S0 | SPMWHT328 Series |
|---|---|---|
| CCT (K) | 5000 K | 2700 - 6500 K |
| Color | Cool, White | Cool, White, Warm, Neutral |
| CRI (Color Rendering Index) | 80 | 70 - 90 |
| Current - Max [Max] | 500 mA | 500 mA |
| Current - Test | 150 mA | 150 mA |
| Flux @ 85°C, Current - Test | 62 lm | 42 - 66 lm |
| Flux @ 85°C, Current - Test | - | 46 lm |
| Flux @ 85°C, Current - Test | - | 38 lm |
| Flux @ 85°C, Current - Test [Max] | 66 lm | 62 - 70 lm |
| Flux @ 85°C, Current - Test [Min] | 58 lm | 54 - 62 lm |
| Height - Seated (Max) [Max] [z] | 0.03 in | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm | 0.75 mm |
| Lumens/Watt @ Current - Test | 145 lm/W | 98 - 154 lm/W |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1212 | 1212 |
| Package / Case | 3030 Metric | 3030 Metric |
| Size / Dimension [x] | 0.118 in | 0.118 in |
| Size / Dimension [x] | 3 mm | 3 mm |
| Size / Dimension [y] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.118 in | 0.118 in |
| Supplier Device Package | 3030 | 3030 |
| Thermal Resistance of Package [diameter] | 7 °C/W | 7 °C/W |
| Viewing Angle | 115 ° | 115 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V | 2.85 V |
SPMWHT328 Series
LED LM301A COOL WHITE 5000K 3030
| Part | Color | Lumens/Watt @ Current - Test | Current - Test | Supplier Device Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | CCT (K) | Current - Max [Max] | Flux @ 85°C, Current - Test [Min] | Flux @ 85°C, Current - Test [Max] | Flux @ 85°C, Current - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | CRI (Color Rendering Index) | Voltage - Forward (Vf) (Typ) | Thermal Resistance of Package [diameter] | Viewing Angle | Package / Case | Package / Case | Flux @ 85°C, Current - Test [Max] | Flux @ 85°C, Current - Test [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samsung Semiconductor, Inc. SPMWHT328FD3WAR0S0 | Cool, White | 154 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 5000 K | 500 mA | 62 lm | 70 lm | 66 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 70 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||
Samsung Semiconductor, Inc. SPMWHT328FD3WAVKS0 | Warm, White | 145 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 500 mA | 58 lm | 66 lm | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 70 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | |||
Samsung Semiconductor, Inc. SPMWHT328FD5WAT0S0 | Neutral, White | 145 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 4000 K | 500 mA | 58 lm | 66 lm | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 80 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||
Samsung Semiconductor, Inc. SPMWHT328FD5WAWMS0 | Warm, White | 136 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 2700 K | 500 mA | 54 lm | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 80 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | |||
Samsung Semiconductor, Inc. SPMWHT328FD3WAUKS0 | Warm, White | 145 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 3500 K | 500 mA | 58 lm | 66 lm | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 70 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||
Samsung Semiconductor, Inc. SPMWHT328FD5WAP0S0 | Cool, White | 145 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 6500 K | 500 mA | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 80 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||||
Samsung Semiconductor, Inc. SPMWHT328FD7WAV0S0 | Warm, White | 108 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 500 mA | 46 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 90 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | |||||
Samsung Semiconductor, Inc. SPMWHT328FD5WAPKS0 | Cool, White | 145 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 6500 K | 500 mA | 58 lm | 66 lm | 62 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 80 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||
Samsung Semiconductor, Inc. SPMWHT328FD7WARKS0 | Cool, White | 108 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 5000 K | 500 mA | 46 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 90 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric | ||||
Samsung Semiconductor, Inc. SPMWHT328FD7WAQ0S0 | Cool, White | 108 lm/W | 150 mA | 3030 | 0.03 in | 0.75 mm | 5700 K | 500 mA | 46 lm | 0.118 in | 3 mm | 3 mm | 0.118 in | Surface Mount | 90 | 2.85 V | 7 °C/W | 115 ° | 1212 | 3030 Metric |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 40000 | $ 0.07 | |
| 100000 | $ 0.06 | |||
Description
General part information
SPMWHT328 Series
LED Lighting LM301A White, Cool 5000K 2.85V 150mA 115° 1212 (3030 Metric)
