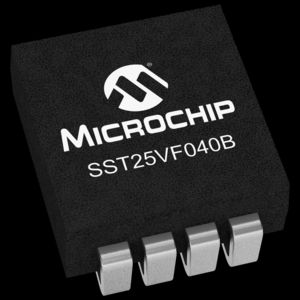

SST25VF040B-50-4I-S2AE
ActiveMicrochip Technology
FLASH SERIAL-SPI 3.3V 4MBIT 4M X 1BIT 8-PIN SOIC TUBE
SST25VF040B-50-4I-S2AE
ActiveMicrochip Technology
FLASH SERIAL-SPI 3.3V 4MBIT 4M X 1BIT 8-PIN SOIC TUBE
Description
General part information
SST25VF040 Series
Single Voltage Read and Write Operations2.7-3.6V
2.7-3.6V
Serial Interface ArchitectureSPI Compatible: Mode 0 and Mode 3
Technical Specifications
Parameters and characteristics for this part
| Specification | SST25VF040B-50-4I-S2AE |
|---|---|
| Clock Frequency | 50 MHz |
| Memory Depth | 512 K |
| Memory Format | FLASH |
| Memory Interface (Type) | SPI |
| Memory Size | 4 Mbit |
| Memory Type | Non-Volatile |
| Memory Width | 8 bit |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.209 in |
| Package Name | 8-SOIC |
| Package Width | 5.3 mm |
| Technology | FLASH |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
| Write Cycle Time - Page | 10 µs |
| Write Cycle Time - Word | 10 µs |
