BXRE-57C6501-C-73

Active

BRIDGELUX

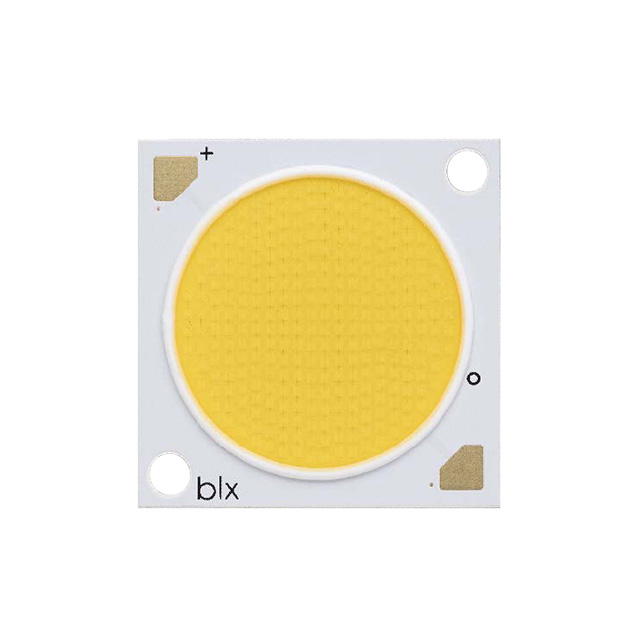

LED COB V22 CL WHT SQUARE 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-57C6501-C-73

Active

BRIDGELUX

LED COB V22 CL WHT SQUARE 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	150	$ 13.73

Description

General part information

BXRE-57 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V22 Array White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-57C6501-C-73	BXRE-57 Series

CCT (K)	5700 K	5700 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	70	70 - 98
Current - Max [Max]	2.88 A	1 - 900 A
Current - Test	1.44 A	1.05 - 900 A
Height [z]	1.7 mm	1.65 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	22.6 mm	6.3 - 23.3 mm
Lumens/Watt @ Current - Test	158 lm/W	121 - 182 lm/W
Luminous Flux @ Current/Temperature	11513 lm	464 - 11513 lm
Size / Dimension [x]	28 mm	12.5 - 28 mm
Size / Dimension [y]	28 mm	12.5 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	50.7 V	17.2 - 50.7 V

BXRE-57 Series

V18C THRIVE COOL WHITE LED ARRAY

Part	Lens Type	Color	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Type	Height [z]	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Temperature - Test	Current - Test
BRIDGELUX BXRE-57S4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	132 lm/W	5700 K	120 °	34.4 V	95	5312 lm
BRIDGELUX BXRE-57C4001-C-73	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	157 lm/W	5700 K	120 °	34 V	70	6227 lm	85 °C
BRIDGELUX BXRE-57E6501-C-83	Flat	Cool, White	Square	28 mm	28 mm	3.5 A	23.3 mm	Chip On Board (COB)	1.65 mm	182 lm/W	5700 K	120 °	50.7 V	80	11076 lm		1.2 A
BRIDGELUX BXRE-57C6501-B-73	Flat	Cool, White	Square	28 mm	28 mm	2.34 A	22.6 mm	Chip On Board (COB)	1.7 mm	158 lm/W	5700 K	120 °	50.7 V	70	9354 lm	85 °C
BRIDGELUX BXRE-57E4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K		34 V	80	6170 lm	85 °C
BRIDGELUX BXRE-57E2001-C-74	Flat	Cool, White	Square	19 mm	19 mm	1.26 A	14 mm	Chip On Board (COB)	1.7 mm	156 lm/W	5700 K		33.9 V	80	3322 lm	85 °C	630 mA
BRIDGELUX BXRE-57C1001-C-74	Flat	Cool, White	Square			720 mA	10.2 mm	Chip On Board (COB)	1.7 mm	151 lm/W	5700 K		34 V	70	1853 lm	85 °C	360 mA
BRIDGELUX BXRE-57E4001-B-73	Flat	Cool, White	Square	24 mm	24 mm	1.8 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K	120 °	34 V	80	4746 lm	85 °C	900 mA
BRIDGELUX BXRE-57C4001-C-74	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	157 lm/W	5700 K		34 V	70	6227 lm	85 °C
BRIDGELUX BXRE-57E4001-C-73	Flat	Cool, White	Square	24 mm	24 mm	2.34 A	19.2 mm	Chip On Board (COB)	1.7 mm	155 lm/W	5700 K	120 °	34 V	80	6170 lm	85 °C
