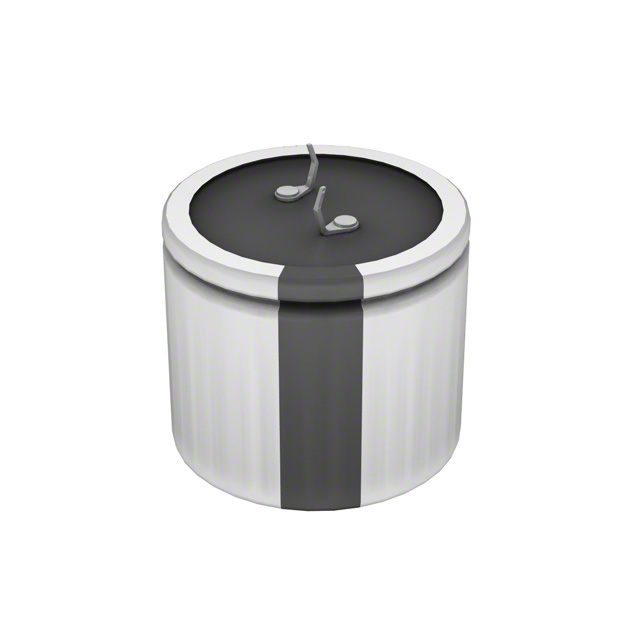

Specification	LPX821M200H3P3

Applications	General Purpose
Capacitance	820 µF
ESR (Equivalent Series Resistance)	243 mOhm
Height - Seated (Max)	1.181 in
Lead Spacing	0.394 in
Lifetime	1000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.7 A, 2.97 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	200 VDC
