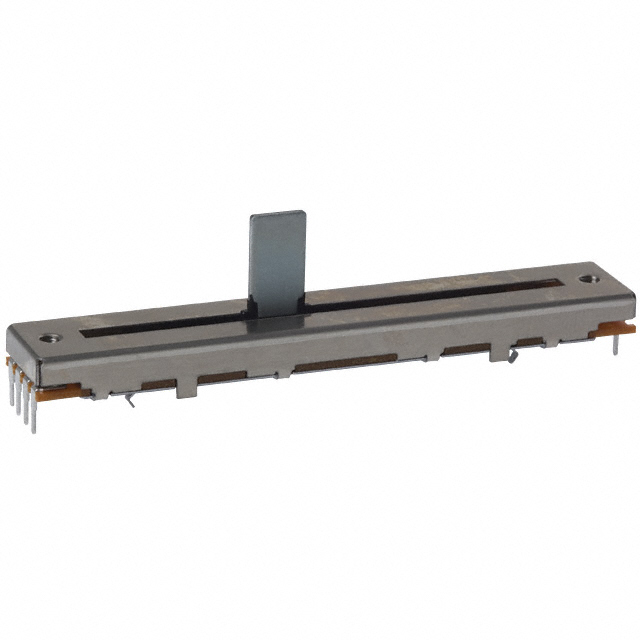

EVB-NADR15D14
ObsoletePanasonic Electronic Components
SLIDE POT 10K OHM 0.1W TOP 60MM
EVB-NADR15D14
ObsoletePanasonic Electronic Components
SLIDE POT 10K OHM 0.1W TOP 60MM
Description
General part information
EVB-NADR15D14
10 kOhms 0.1W, 1/10W Through Hole Slide Potentiometer Top Adjustment Type
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB-NADR15D14 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Dual |
| Mounting Type | Through Hole |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Resistance | 10 kOhm |
| Size / Dimension Height | 0.315 in |
| Size / Dimension Length | 3.465 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.591 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 40 % |
| Travel Range | 60 mm |
