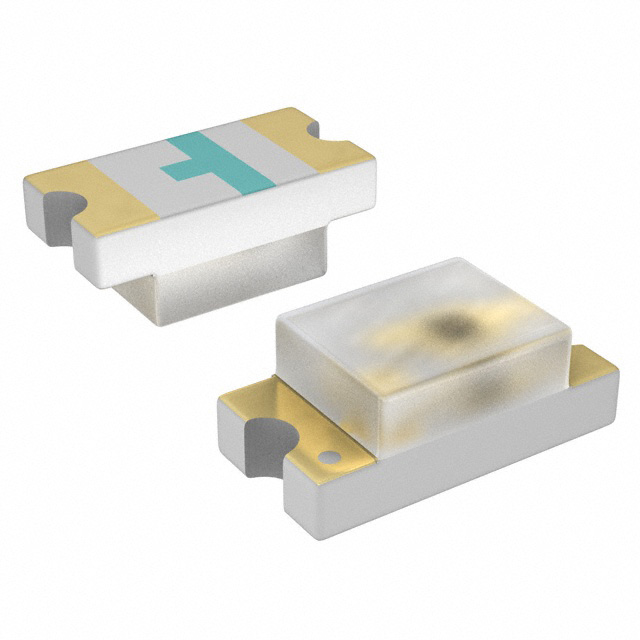

SML-LXFT1206SGD-TR

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green LED Indication - Discrete 2.2V 1206 (3216 Metric)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED BLUE CLEAR 1206 SMD

Part	Color	Lens Size [x]	Lens Size [y]	Millicandela Rating	Viewing Angle	Wavelength - Peak	Supplier Device Package	Package / Case	Mounting Type	Lens Style	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Configuration	Current - Test	Lens Transparency	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SML-LXFT1206SBC-TR	Blue	1.9 mm	1.6 mm	10 mcd	140 °	430 nm	1206	1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Colorless	1.6 mm	3.2 mm	3.8 V	Standard	20 mA	Clear
Lumex Opto/Components Inc. SML-LXFT1206SYC-TR	Yellow	1.9 mm	1.6 mm	70 mcd	140 °	590 nm	1206	1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Colorless	1.6 mm	3.2 mm	2 V	Standard	20 mA	Clear
Lumex Opto/Components Inc. SML-LXFT1206SGD-TR	Green	2 mm	1.6 mm	12 mcd	140 °	565 nm		1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Green	1.6 mm	3.2 mm	2.2 V	Independent	20 mA	Diffused	1.6 mm
Lumex Opto/Components Inc. SML-LXFT1206SUGCTR	Green	2 mm	1.6 mm	45 mcd	140 °			1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Colorless	1.6 mm	3.2 mm	2.2 V	Independent	20 mA	Clear	1.6 mm
Lumex Opto/Components Inc. SML-LXFT1206SOC-TR		1.9 mm	1.6 mm	75 mcd	140 °	610 nm	1206	1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Colorless	1.6 mm	3.2 mm	2 V	Standard	20 mA	Clear
Lumex Opto/Components Inc. SML-LXFT1206SIC-TR	Red	1.9 mm	1.6 mm	70 mcd	140 °	636 nm	1206	1206 (3216 Metric)	Surface Mount	Rectangle with Flat Top	Colorless	1.6 mm	3.2 mm	2 V	Standard	20 mA	Clear
