PCN10-90S-2.54WB(72)
ObsoleteHirose Electric Co Ltd
CONN DIN RCPT 90POS PCB GOLD
PCN10-90S-2.54WB(72)
ObsoleteHirose Electric Co Ltd
CONN DIN RCPT 90POS PCB GOLD
Description
General part information
PCN10-90S-2.54WB(72)

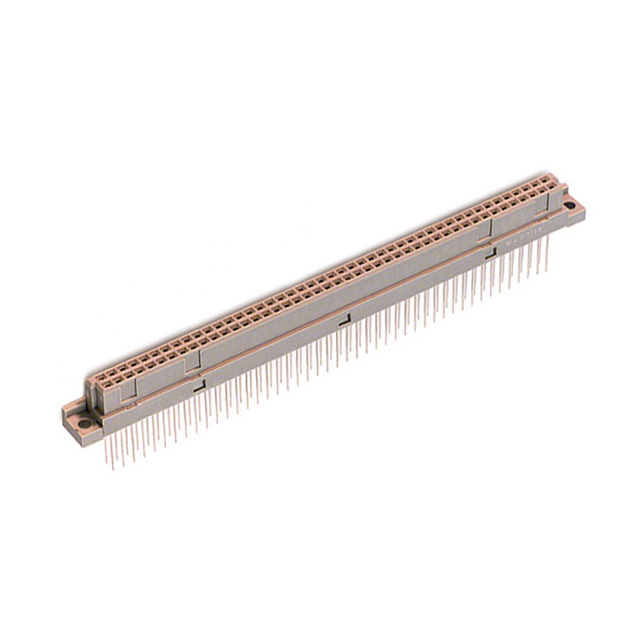

90 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | PCN10-90S-2.54WB(72) |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating | 2 A |
| Material - Insulation | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 90 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Style | B |
| Termination | Wire Wrap |
