RPI-0129
ObsoleteRohm Semiconductor
SENSOR OPT SLOT TRANSISTOR MODUL
RPI-0129
ObsoleteRohm Semiconductor
SENSOR OPT SLOT TRANSISTOR MODUL
Description
General part information
RPI-0129

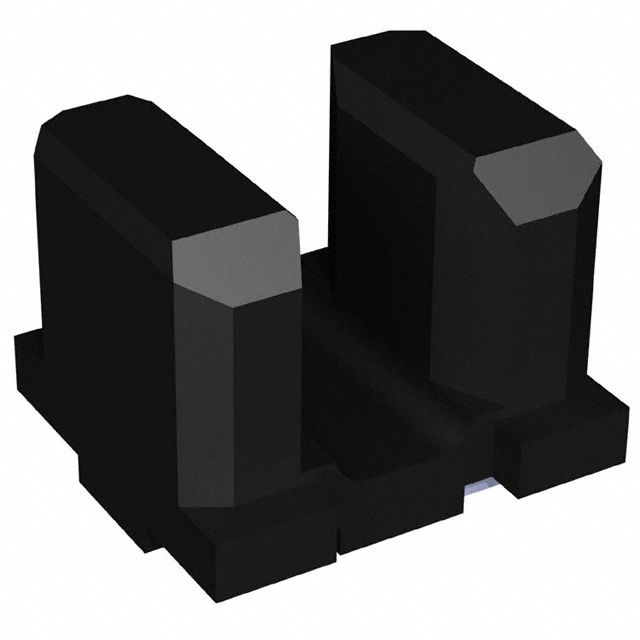

Optical Sensor 0.047" (1.2mm) Transistor Module, No Lead, Slot Type
Technical Specifications
Parameters and characteristics for this part
| Specification | RPI-0129 |
|---|---|
| Current - Collector (Ic) (Max) | 0.03 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Transistor |
| Package / Case | Slot Type, No Lead, Module |
| Response Time | 10 µs |
| Sensing Distance | 0.047 " |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
