CIRBP36LBN
ActiveTE Connectivity AMP Connectors

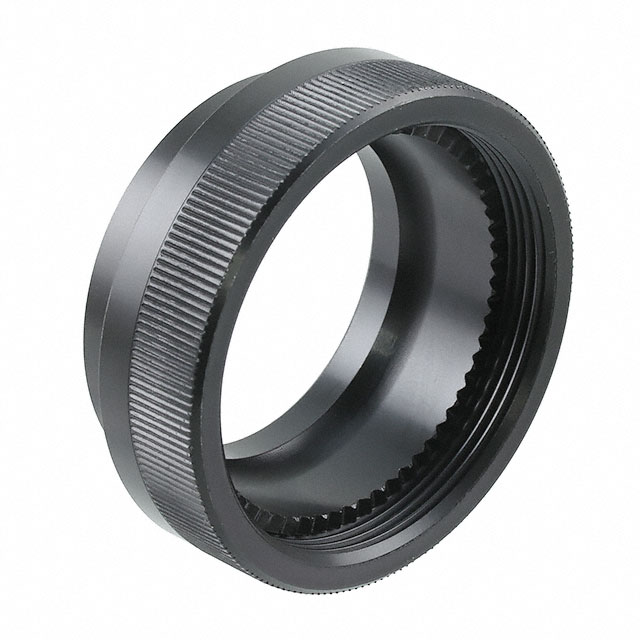

CONN BACKNUT 36 BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRBP36LBN
ActiveTE Connectivity AMP Connectors
CONN BACKNUT 36 BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRBP36LBN | CIRBP36 Series |
|---|---|---|
| Accessory Type | Backnut | Backnut |
| Cable Exit | - | 90 - 180 ° |
| Color | Black | Black |
| Diameter - Outside | - | 61 mm |
| Diameter - Outside | - | 2.402 " |
| For Use With/Related Products | CIRP Series Circular Connectors | CIRP Series Circular Connectors |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | - | Zinc Cobalt |
| Shell Size - Insert | 36 | 36 |
| Shielding | - | Unshielded |
| Thread Size | - | 2 1/16-16 UNS |
| Type | - | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 28.62 | |
CIRBP36 Series
CONN BACKNUT 36 BLACK
| Part | Color | Shell Size - Insert | Accessory Type | Material | For Use With/Related Products | Ingress Protection | Cable Exit | Plating | Thread Size | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shielding | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRBP36LBN | Black | 36 | Backnut | Aluminum Alloy | CIRP Series Circular Connectors | ||||||||
TE Connectivity AMP Connectors CIRBP36SCHSA | 36 | Aluminum Alloy | CIRP Series Circular Connectors | IP67 - Dust Tight, Waterproof | 180 ° | Zinc Cobalt | 2 1/16-16 UNS | 61 mm | 2.402 " | Unshielded | Backshell, Heat Shrink Adapter | ||
TE Connectivity AMP Connectors CIRBP36ECHSA | Black | 36 | Aluminum Alloy | CIRP Series Circular Connectors | IP67 - Dust Tight, Waterproof | 90 ° | Zinc Cobalt | 2 1/16-16 UNS | 61 mm | 2.402 " | Unshielded | Backshell, Heat Shrink Adapter |
Description
General part information
CIRBP36 Series
Connector Backnut 36 Black
