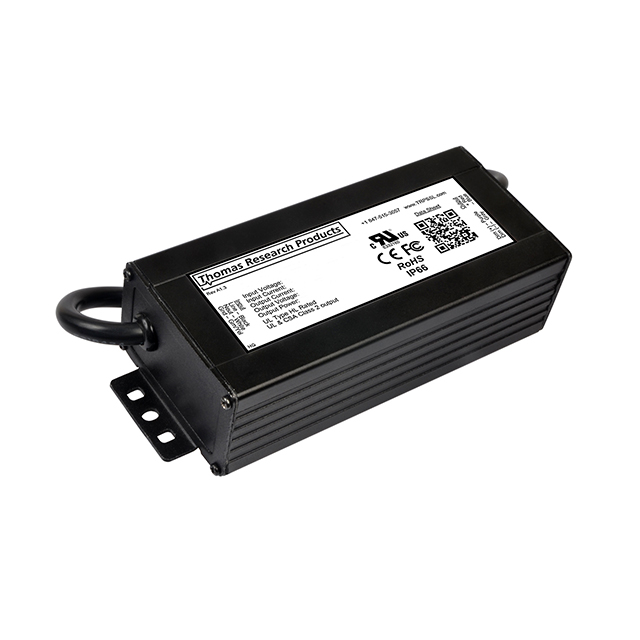

PLED60W-054-C1050-D

Obsolete

Thomas Research Products

LED DRIVER CC AC/DC 18-54V 1.05A

Search across all available documentation for this part.

Obsolete

Thomas Research Products

LED DRIVER CC AC/DC 18-54V 1.05A

Technical Specifications

Parameters and characteristics for this part

LED DRIVER CC AC/DC 18-54V 1.05A

Part	Power (Watts)	Dimming	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Efficiency	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Ratings	Approval Agency	Voltage - Input (Max) [Max]	Termination Style	Topology	Voltage - Output [Max]	Voltage - Output [Min]
Thomas Research Products PLED60W-054-C1050-D	60 W	Analog	OCP, OVP, SCP	1.47 in	5.12 "	37.3 mm	2.33 in	130 mm	59.2 mm	1	88 %	Chassis Mount	1.05 A	90 VAC	Constant Current	IP66, NEMA 6	CE, cURus	305 VAC	Wire Leads	AC DC Converter	54 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.05A 18 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
