1127849
ActiveSICK, Inc.
POSITION SENSORS, MPS-G, MPS-G50
1127849
ActiveSICK, Inc.
POSITION SENSORS, MPS-G, MPS-G50
Description
General part information
1127849

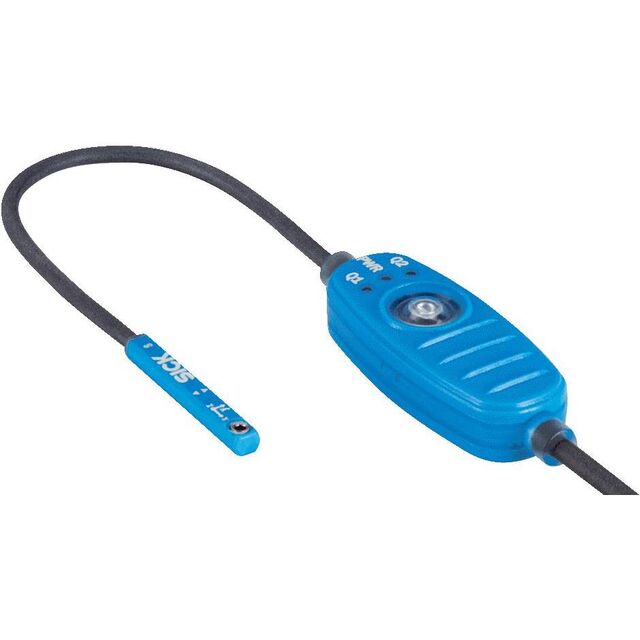

Magnetoresistive Sensor Linear Position C-Slot Cable with Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 1127849 |
|---|---|
| Actuator Type | C-Slot |
| For Measuring | Linear Position |
| Linear Range (Max) | 50 mm |
| Linear Range (Min) | 0 mm |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Module |
| Resistance | 2 kOhm |
| Technology | Magnetoresistive |
| Termination Style | Cable with Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 13 V |
